4.0L Motor Mount Frame Horn conversion for Jeep Wrangler TJ (1997-06) with a factory 4-cylinder frame (TJ4.0FH)
$196.38

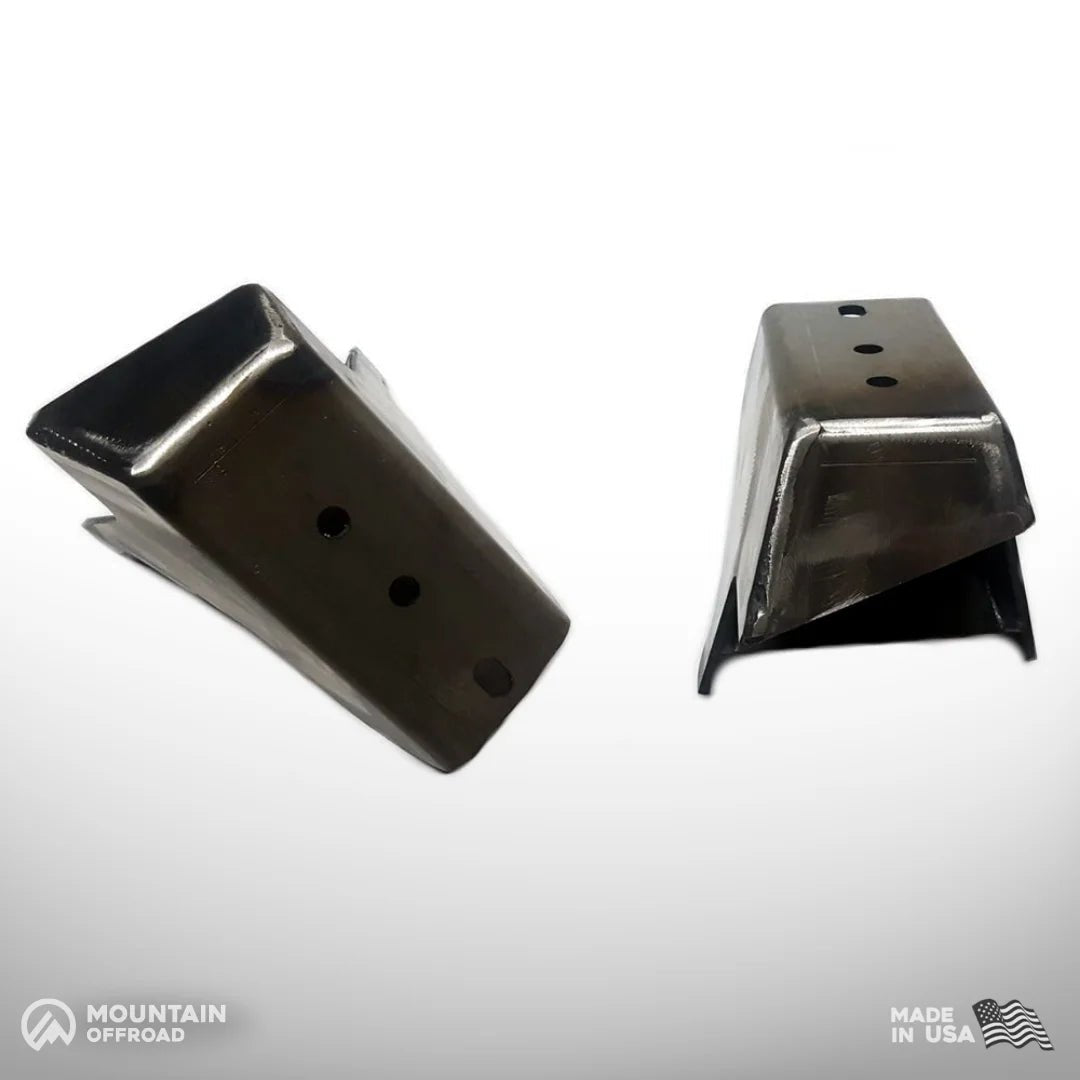

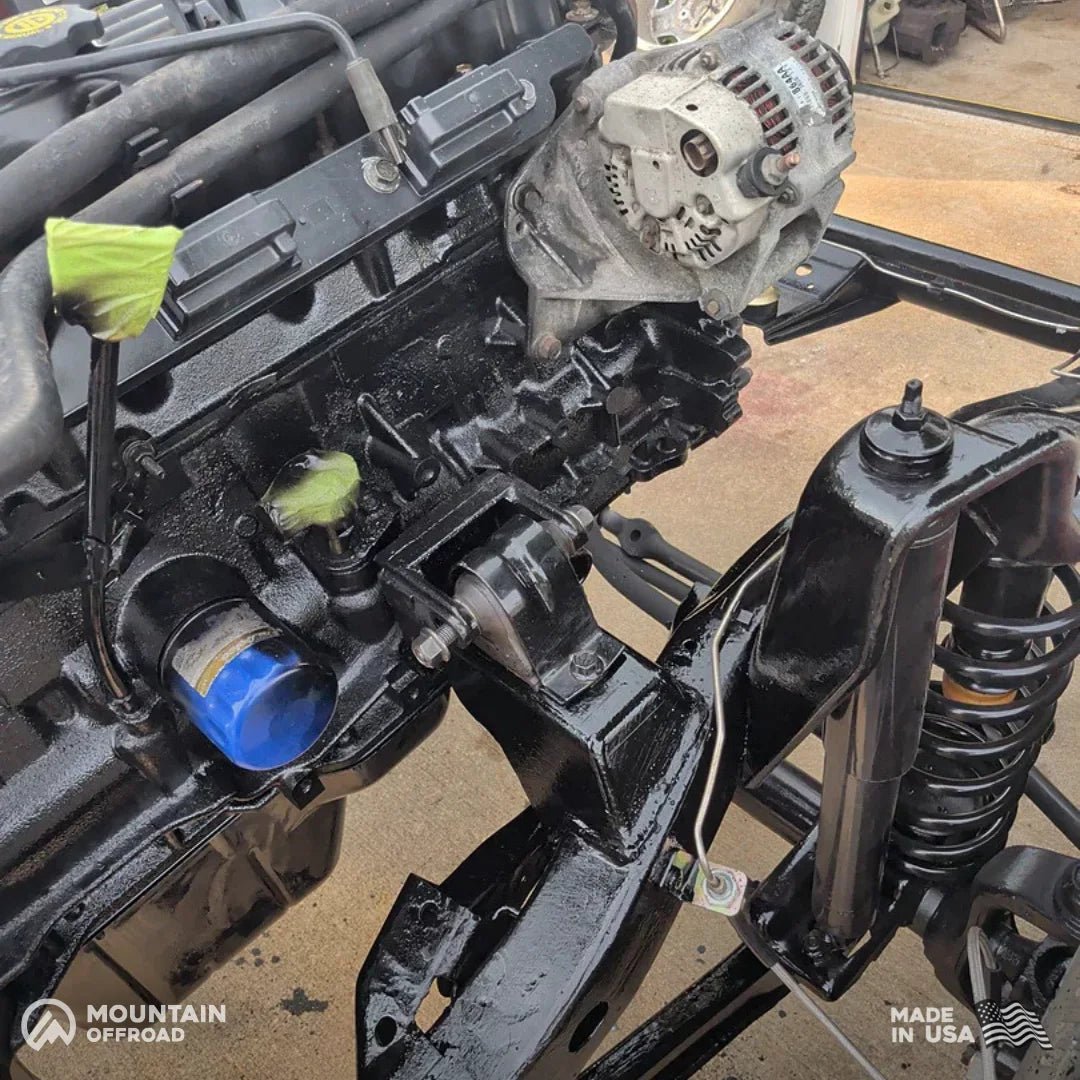

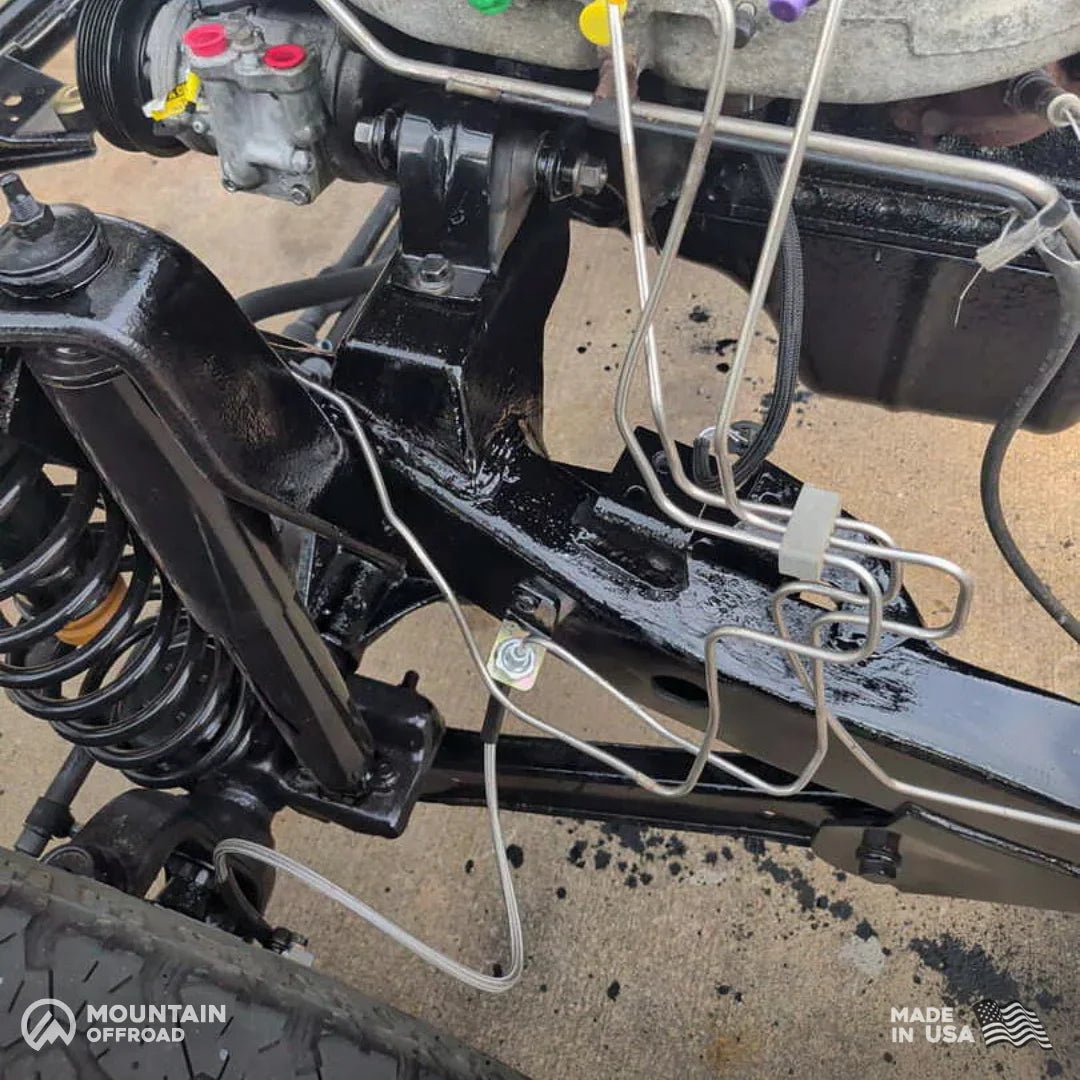

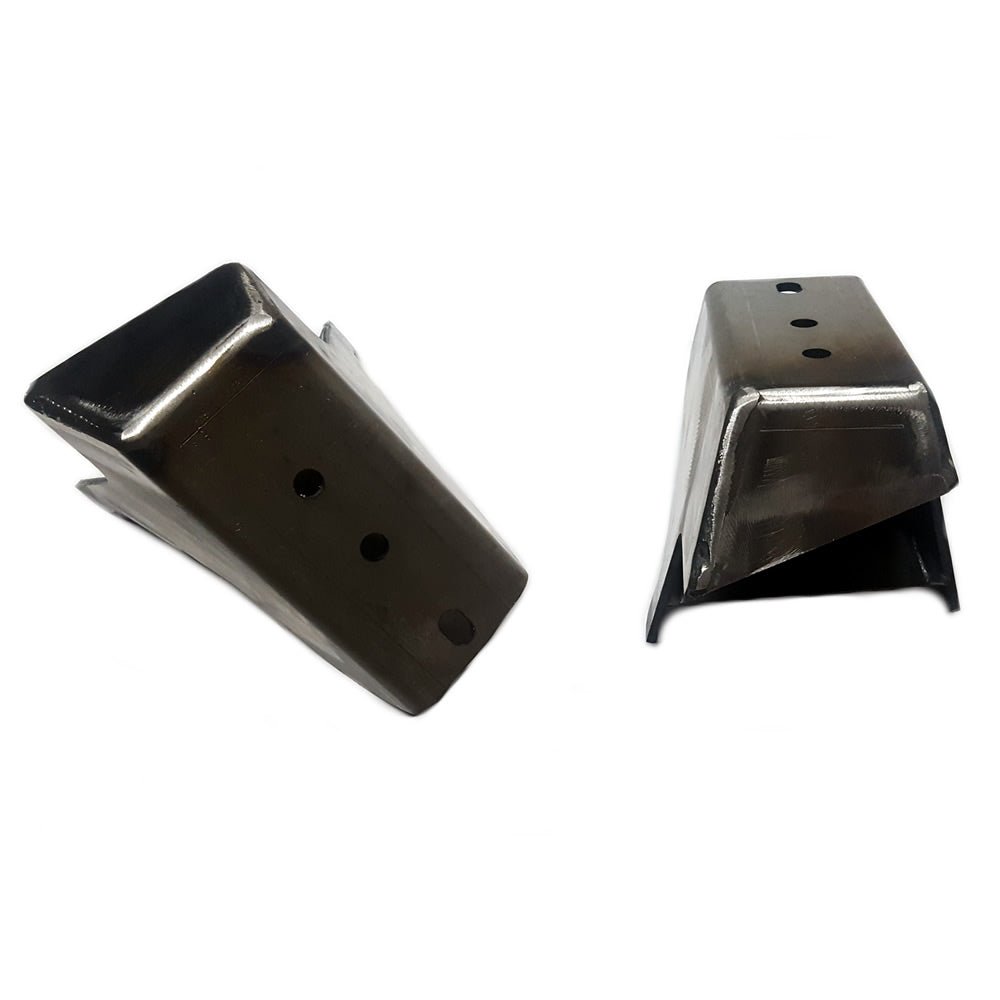

M.O.R.E. has designed these engine frame horns to allow you to install a Jeep 4.0L straight six on 1997-2006 Jeep Wrangler TJ frames originally equipped with the 2.5L 4-cylinder! These Frame Horns can be used with the factory motor mounts or our "bomb proof" motor mounts.
M.O.R.E. has designed these engine frame horns to allow you to install a Jeep 4.0L straight six on 1997-2006 Jeep Wrangler TJ frames originally equipped with the 2.5L 4-cylinder!
These Frame Horns can be used with the factory motor mounts or our "bomb proof" motor mounts.
QUESTIONS & ANSWERS
Ask a Question-
Hello, I am swapping my frame but the frame that I found some one did cut off the motor mount frame horns. This means I need to weld on new motor frame horns... the problem is that my current engine is a 2.5l 4 cylinder - 2001 Jeep Wrangler. My question - Could this work for the 2.5l 4 cylinder engine? or can it be adapt?
Sorry this will not work for the 2.5L only the 4.0L
-
Obviously these are for going from the 2.5l to the 4.0l. Which 4.0s will work, I've read that the XJ and WJ have a slight variation in the block mounting pattern that make swapping into a TJ a headache
This will work with any 4.0L
Thanks -
Do you have mounts that will allow for an 87 2.5 to inline 6 swap? I believe the mounts for these two motors are located a few inches apart?
Sorry this will not fit your YJ and we also dont make for the YJ model.
Thanks -
Will they work on a 1992 2.5 to inline 6 swap?
Sorry they will not work for this application
-
I have a 97 and I am swapping from a 2.5 to a 4.0. If I buy these will I also need part number BBTJ9799? Thanks.
No. The BBTJ9799 is for grabbing extra bolts on the engine block for extreme wheeling conditons. But they are not required.
-
Do you have these to fit a 95 YJ I am swapping a 6cyl for a 4cyl?
Sorry we dont have any frame horns for the motor mounts but the JM602 are the correct motor mount that we have.
-
These are weld on correct?
Yes, these are weld on.
-
Will these work on a 2004 TJ with the 2.4L originally that’s being swapped for a 2000 4.0L?
Mike,
Yes, that is the reason we made the frame horns.
Thanks
Scott -
How much work will it take to use them on a 89 wrangler i4 to i6 swap?
Christain,
We have only fit these on a TJ model frame and will not work on a YJ frame. Some modification could be made but I cant help you on that.
Scott -
I have a 1997 Jeep Wrangler . It had the 2.5 leader in it if I'm reading this correctly . I can buy this product install a 6 cylinder in the place of the 4 cylinder
Scott,
Yes you can. This is why we built this design.
Thanks for your inquary,
Scott -
Does this come with left and right side
Zeth,
Yes there is L and R brackets sold as a pair.
Thanks,
Scott -
Would these work on an YJ frame
Thomas,
Sorry they wont with out modification.
Thanks,
Scott -
Do you have these for the yj or do you no answer I can get some ?
Sorry they will not work for the YJ. A salvage yard is our only sugestion that we can think of.
Thanks,
Scott
