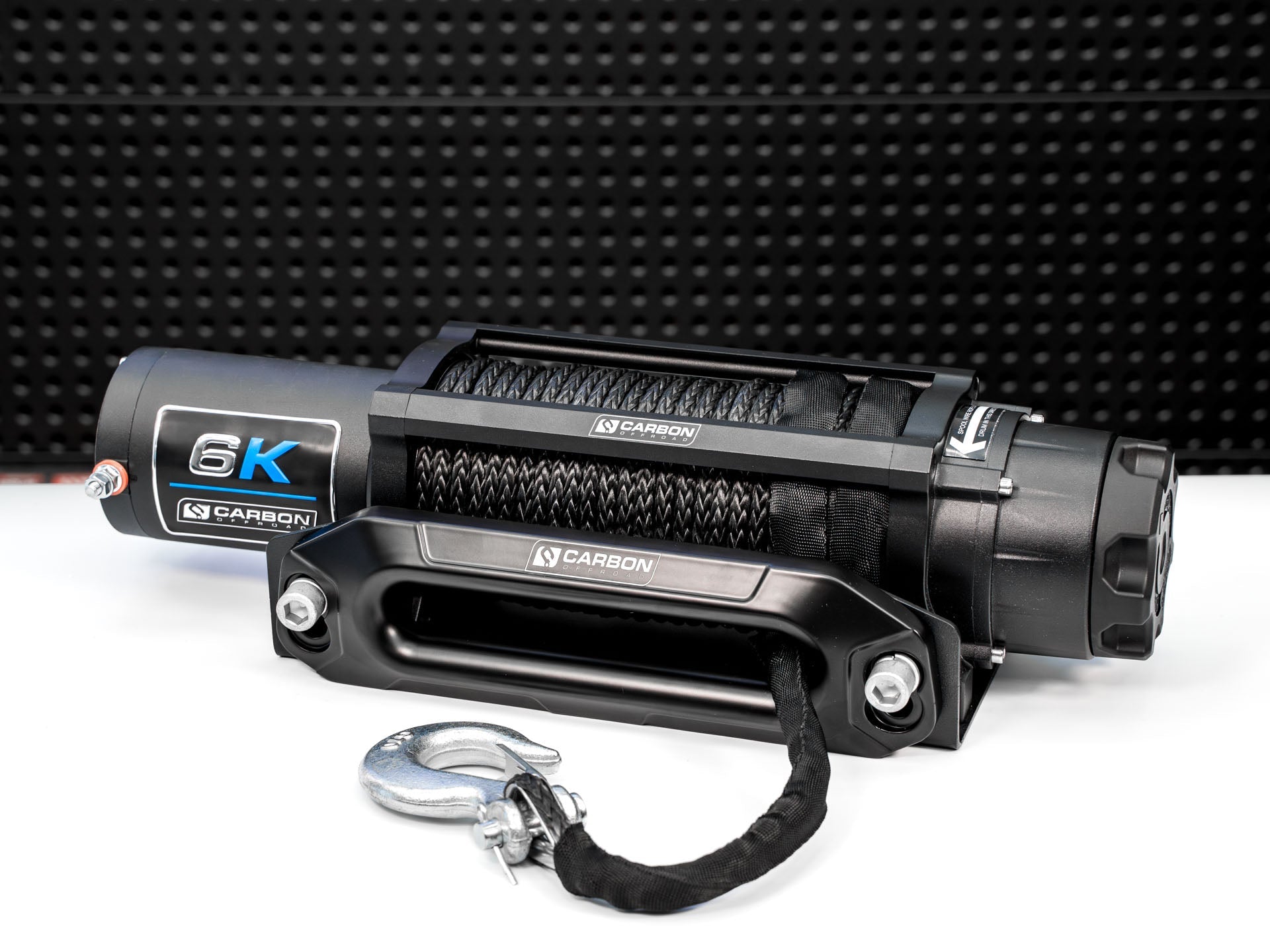

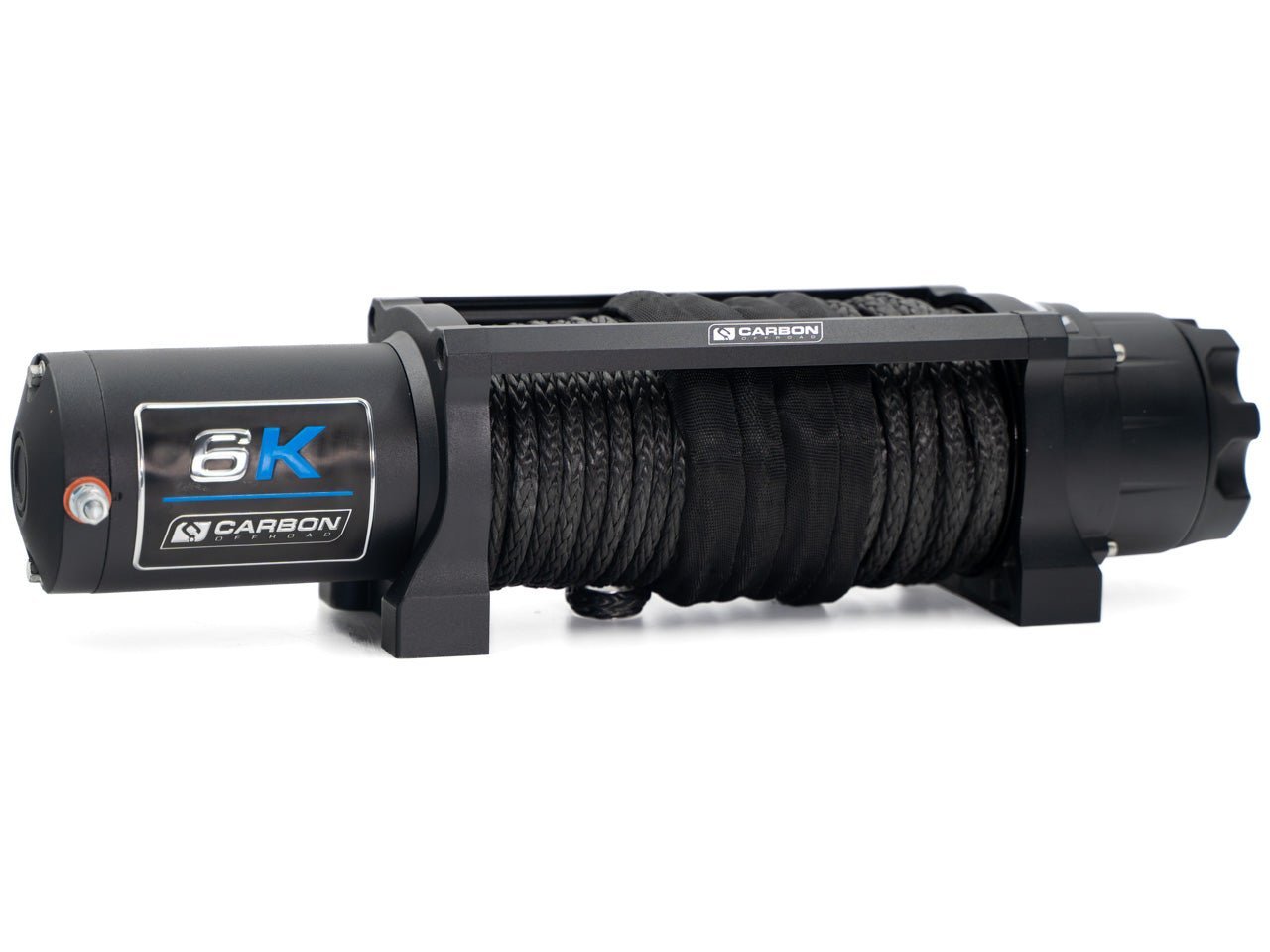

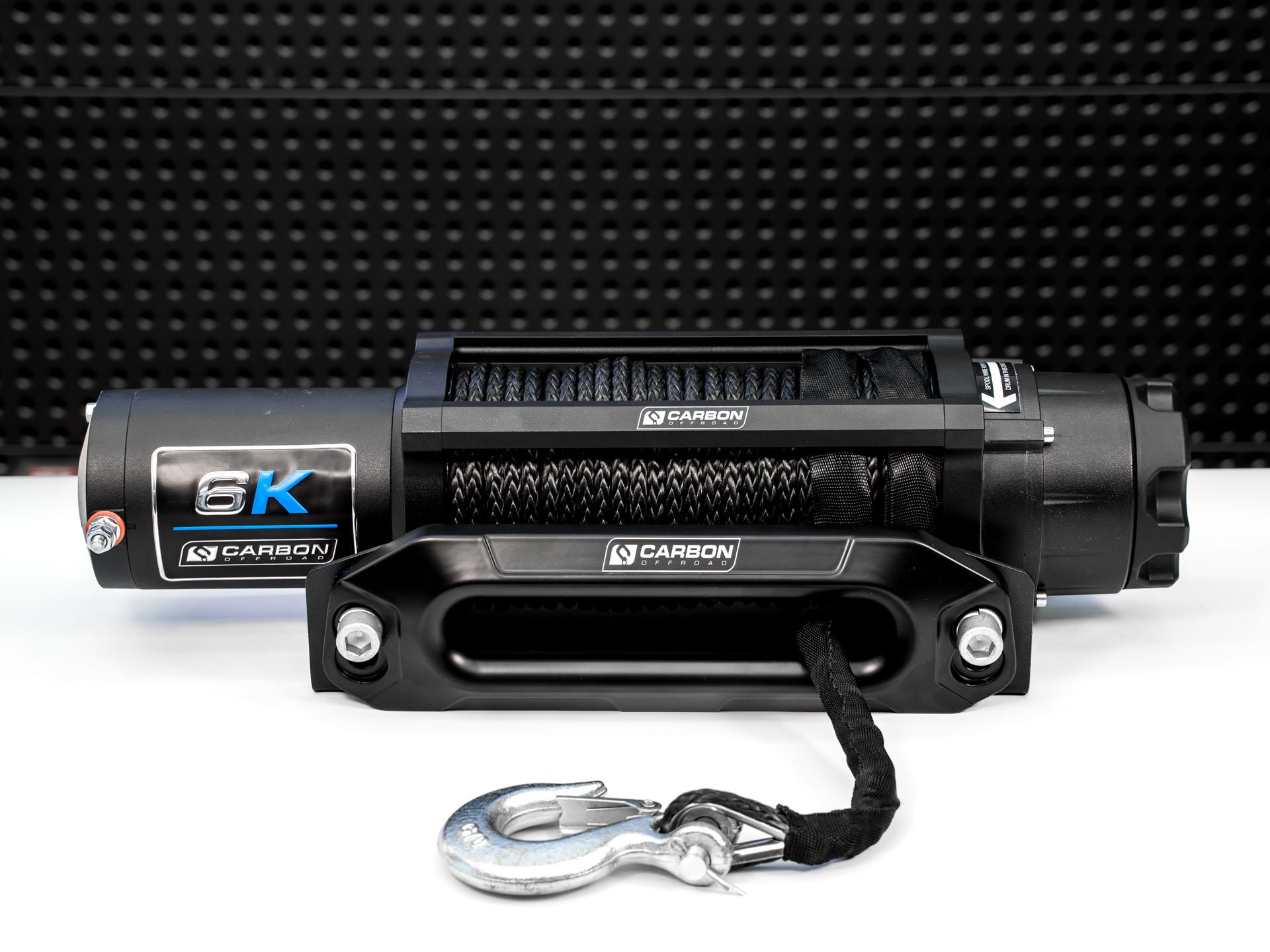

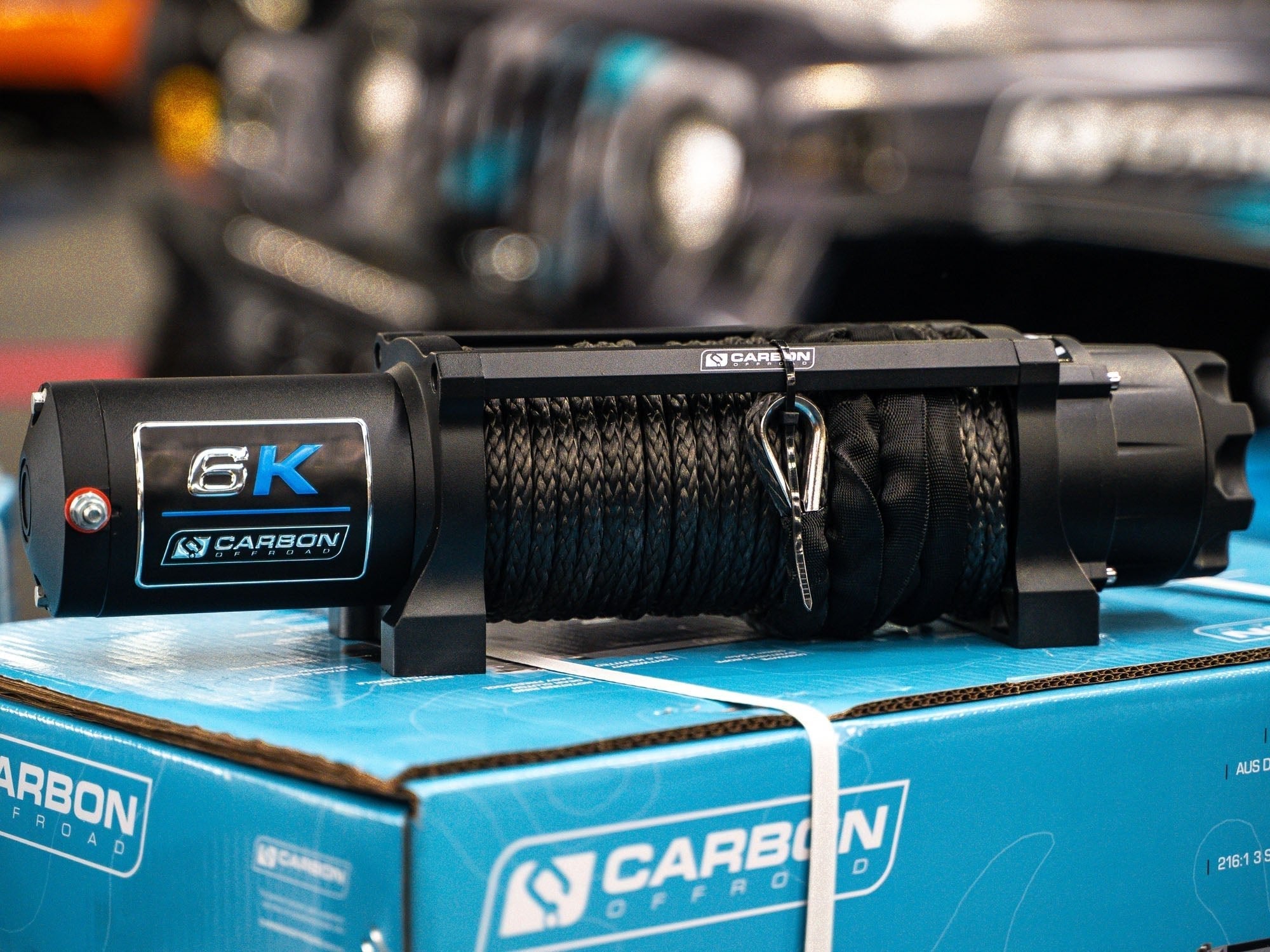

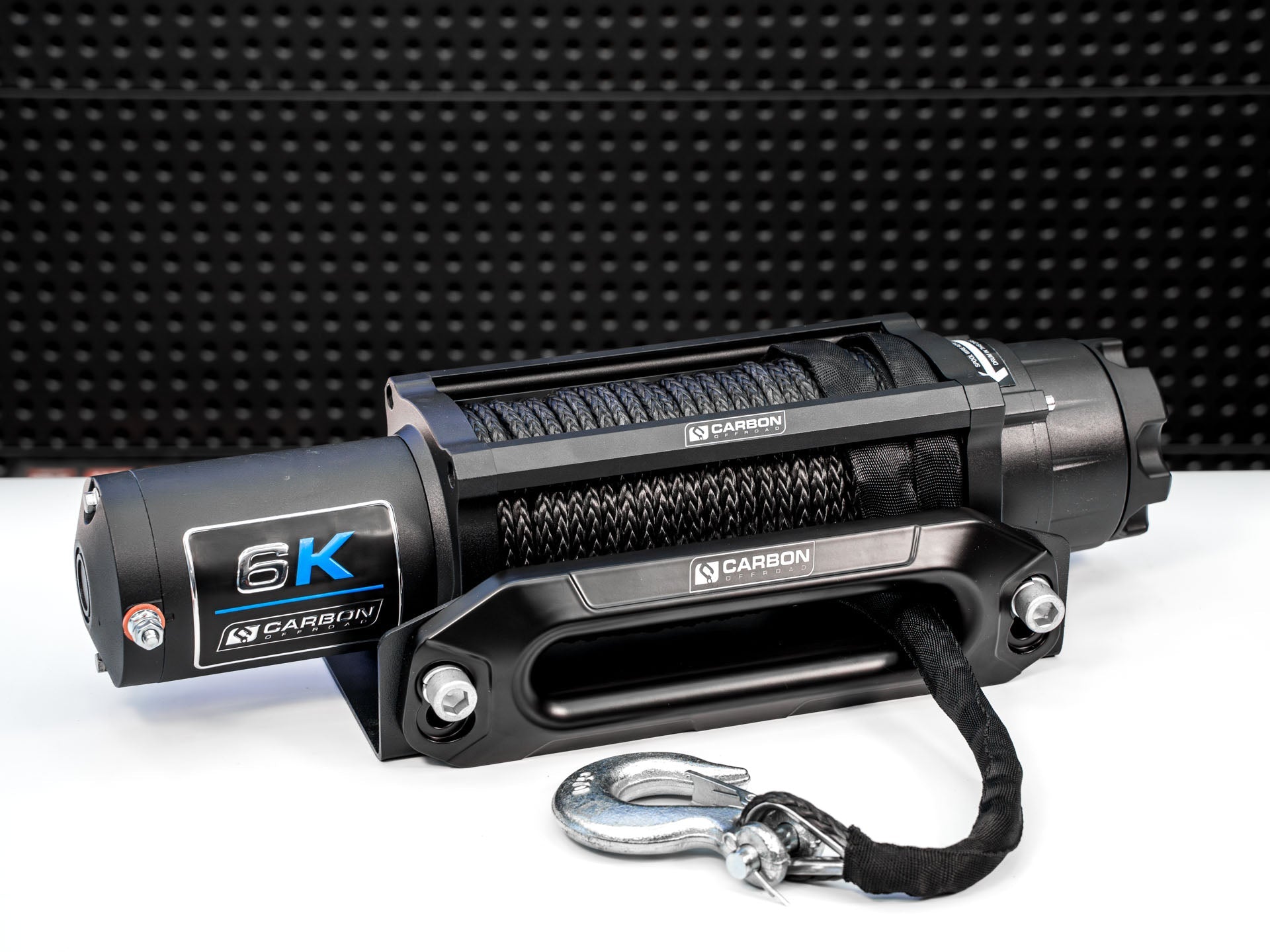

Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
Description
The Carbon Offroad Long Drum 6K is a nimble workhorse built to reach where short-drum winches can’t. With 6,000 lb of pulling capacity and a generous 26 m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty across ATVs, compact 4WDs, caravans, trailers, and boats. If your recoveries demand extra line reach in tight spaces, this winch delivers the pulling length and control to make it happen.
Technical Details
- 6,000 lb (2,725 kg) rated pull for heavy-duty performance
- 2.5 HP sealed motor for compact, reliable operation
- 147:1 gear ratio for controlled, balanced strength

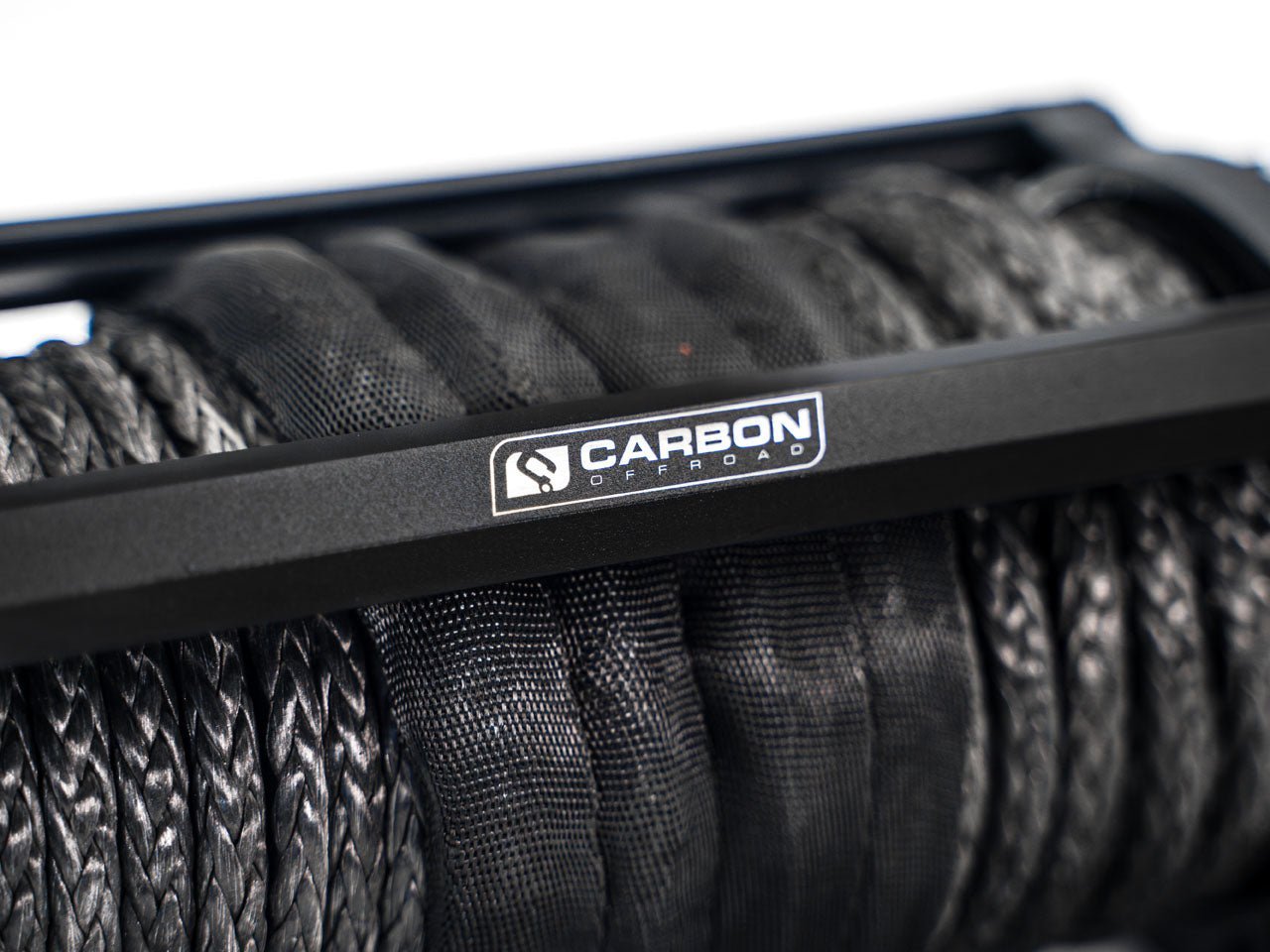

- 85 ft (26 m) synthetic rope for extended reach and versatile recovery
- Mounting bolt pattern: 10 in × 2.99 in (254 mm × 76 mm)
- Drum dimensions: 2.01 in × 8.19 in (51 mm × 208 mm)
- Overall dimensions: 18.62 in × 4.92 in × 4.72 in (473 mm × 125 mm × 120 mm)
- IP66-rated winch and solenoid (excludes remote control and switch)
- Handlebar mini-rocker and wireless remote included for multiple control options
Performance & Design

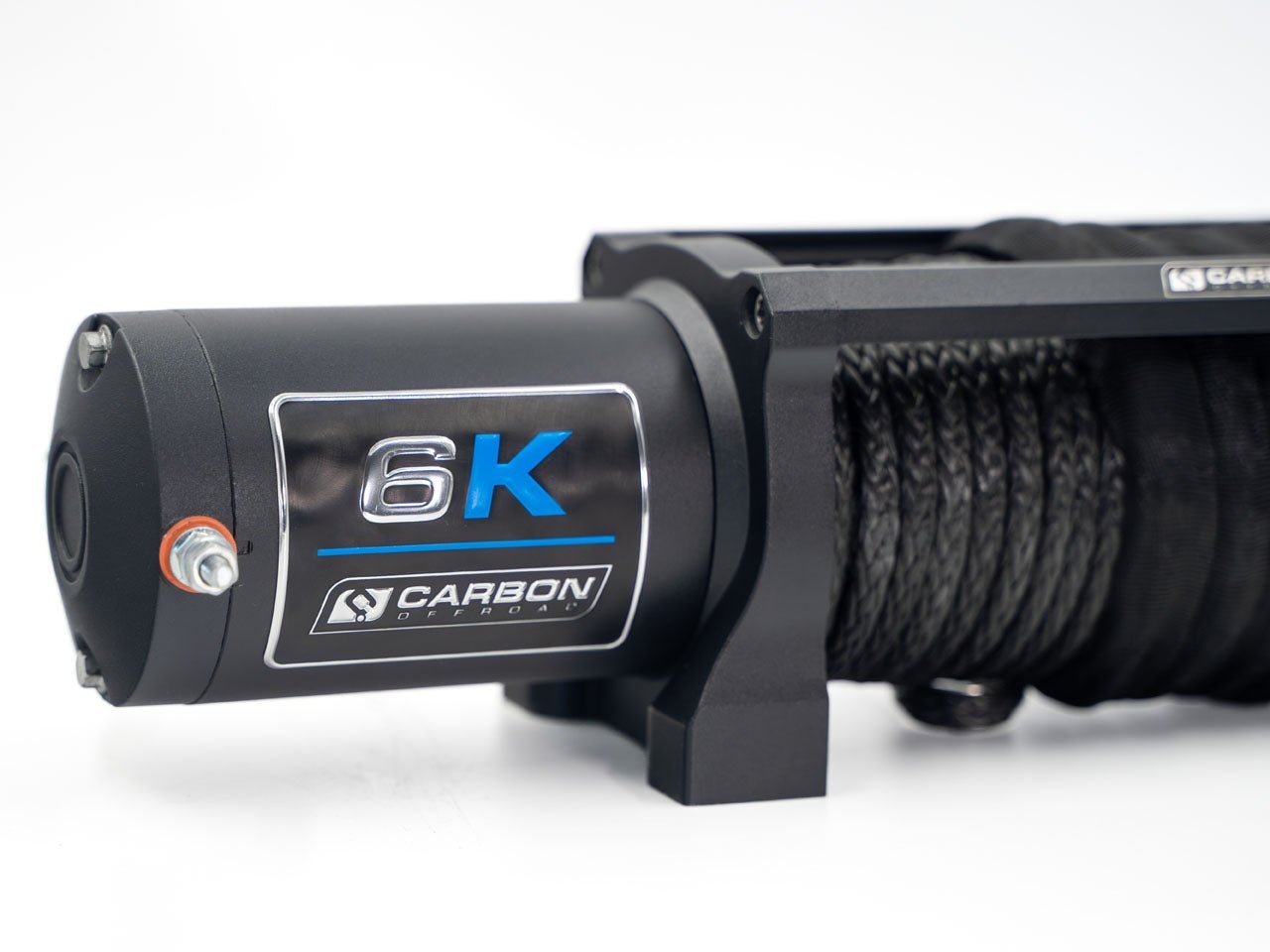

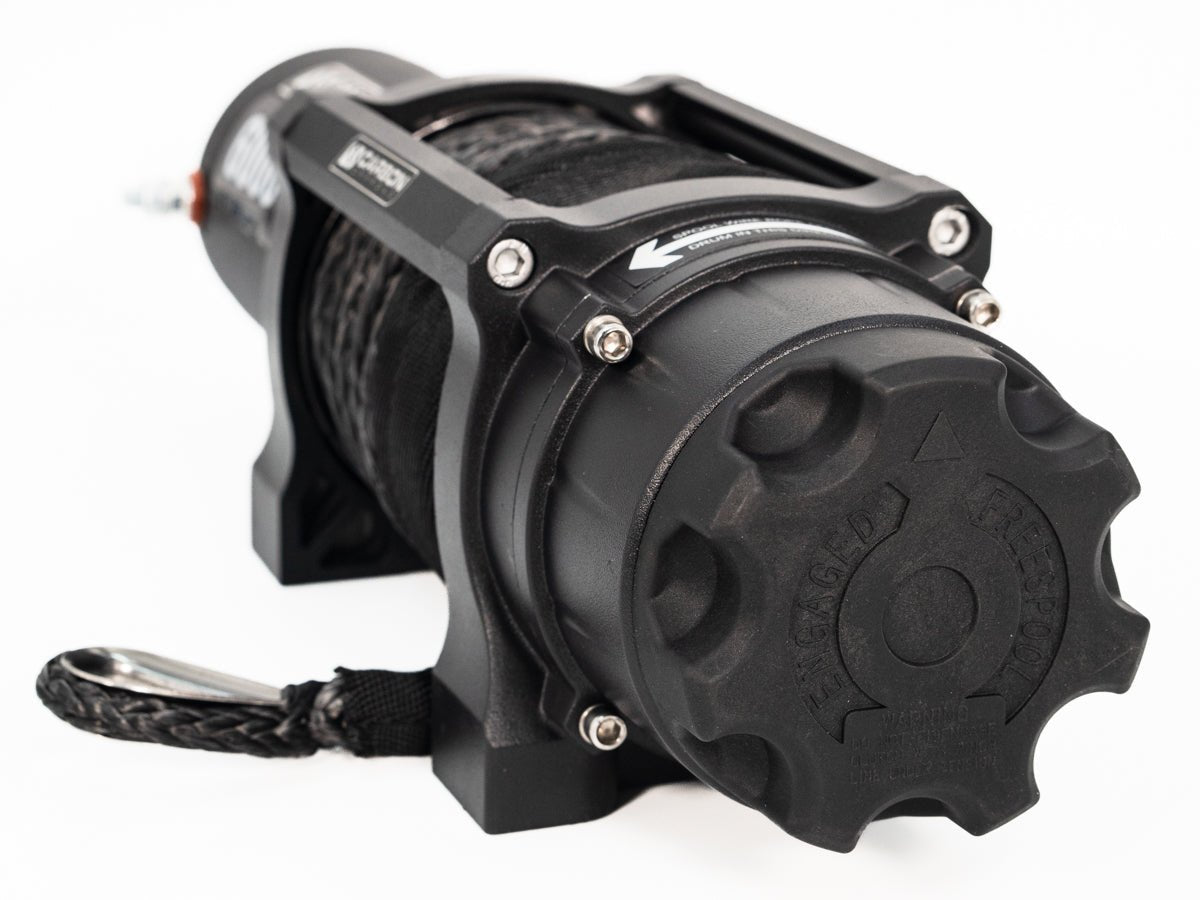

A sealed permanent-magnet motor drives consistent power through a 147:1 gear ratio, providing the right balance of strength and control. The 2.5 HP motor gives compact yet dependable performance, while the near-silent free-spooling clutch allows for fast line deployment. Dual wired and wireless remotes give you complete flexibility in how you operate—whether you’re winching solo from the vehicle or directing the pull from a safer distance. Integrated fail-safe braking keeps the load secure, even on steep inclines.
Applications & Use Cases
Perfect for marine, trailer, and utility use, the Long Drum 6K excels in real-world jobs like hauling a tinny up a low-tide ramp, sliding machinery into a van from several feet out, or winching a small 4WD through deep sand without needing an extension rope. It’s designed for users who value reach, reliability, and compact power.
Fitment Note
This kit does not include the winch cradle shown in product photos.
Partner item — ships directly from Carbon Offroad USA.
