CarbonPro Compact Hydraulic Jack with Mounting Clamps MLH 32''
Description
This compact hydraulic jack packs honest lift, a carbon-fiber handle that won’t weigh you down, and clamps to keep it locked on the rig until it’s time to go to work.
Key Specifications
- Manual: Click here to download the manual
- Handle: Lightweight real carbon-fiber handle construction
- Valve: Lockable air bleeder valve (see notes below)
- Lowering: Fast and slow lowering functions for precise control
- Max. Lifting Height: 32.25”
- Travel: 13.37”
- Lifting Range: 6” – 32.25”
- Compressed Height: 27.1”
- Extended Height: 40.8”
- Weight: 19 lb
- Max Lifting Capacity: 4,400 lbs
- Fluid: Hydraulic Mineral Oil
- Fluid Capacity: 0.8 quart / 800 ml
Where it excels

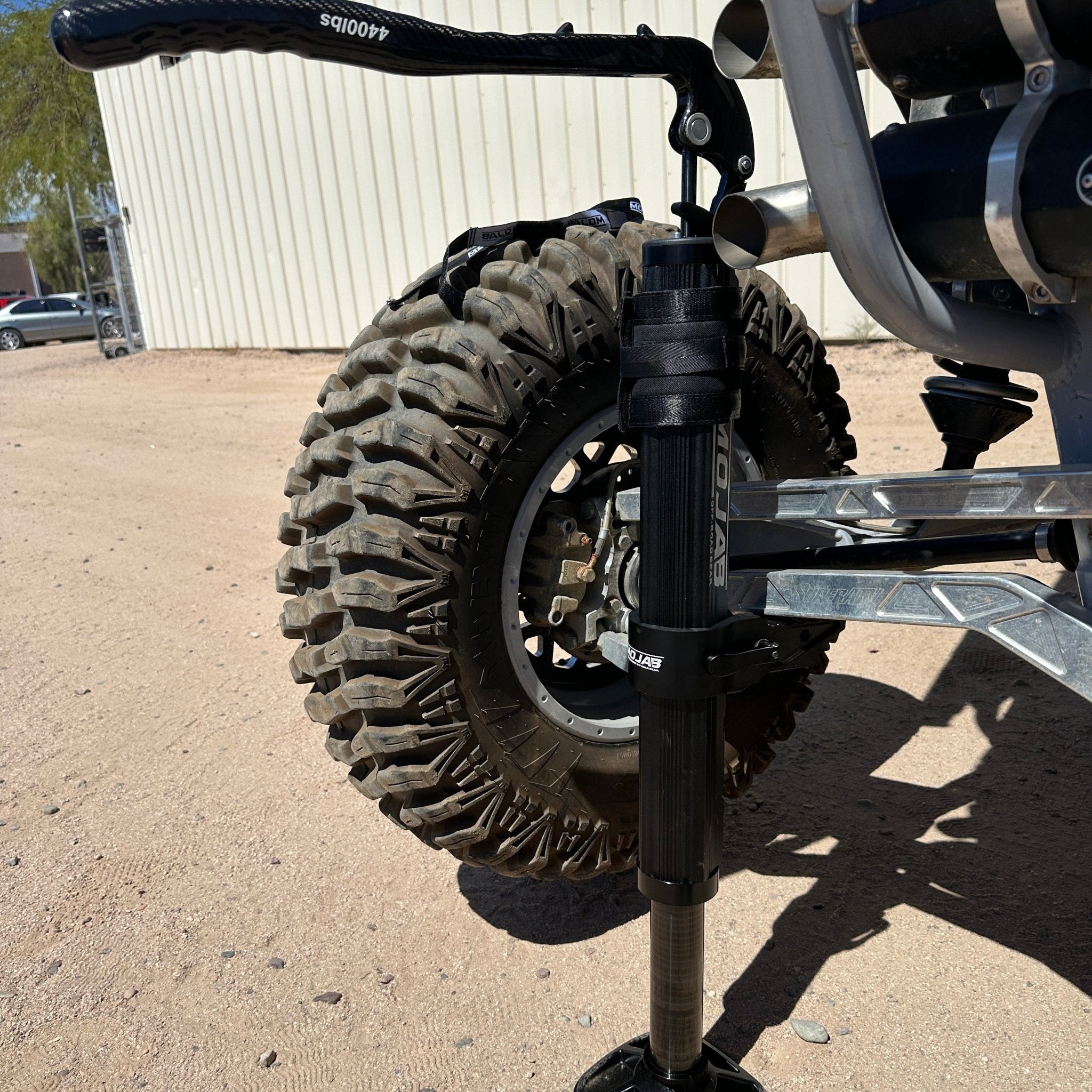

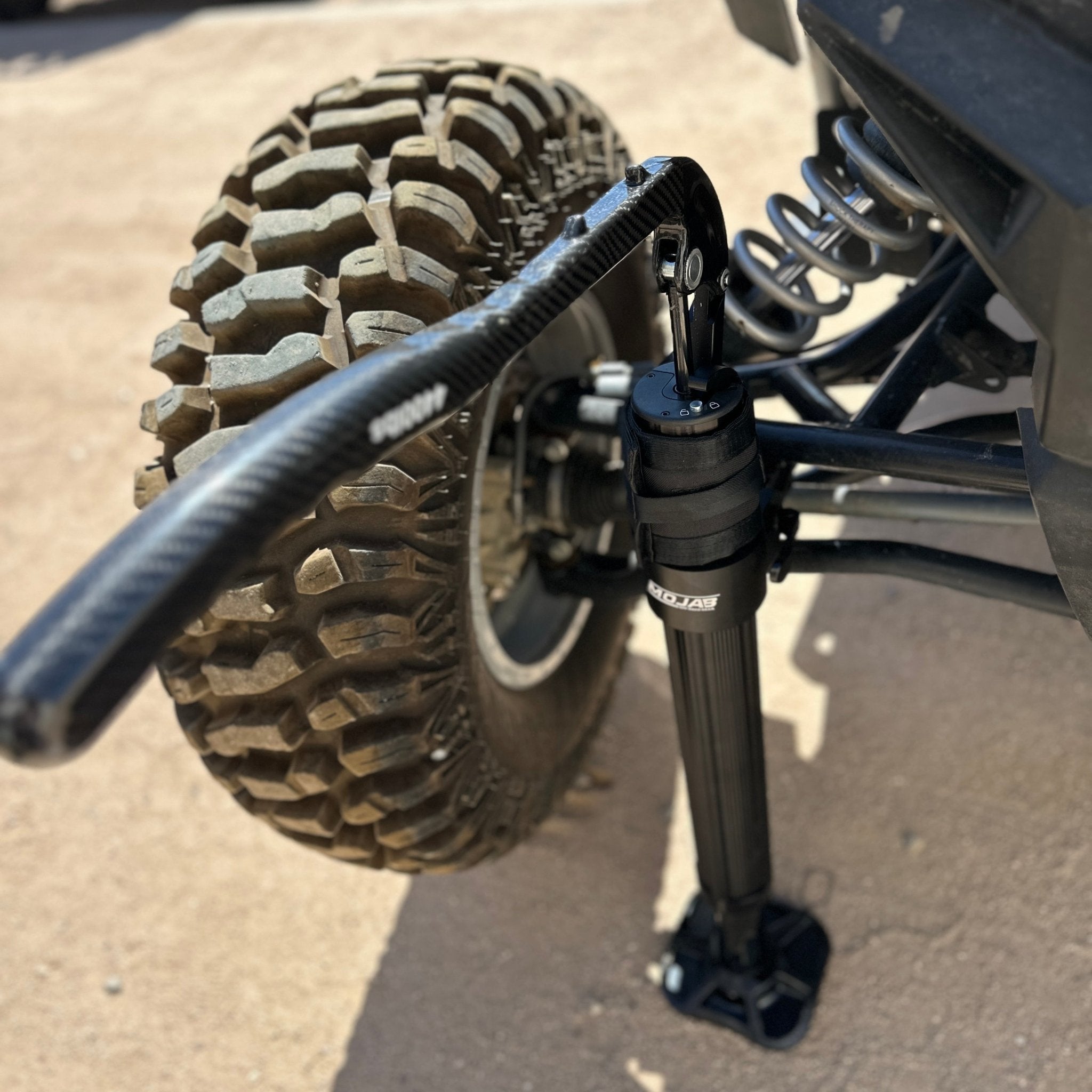

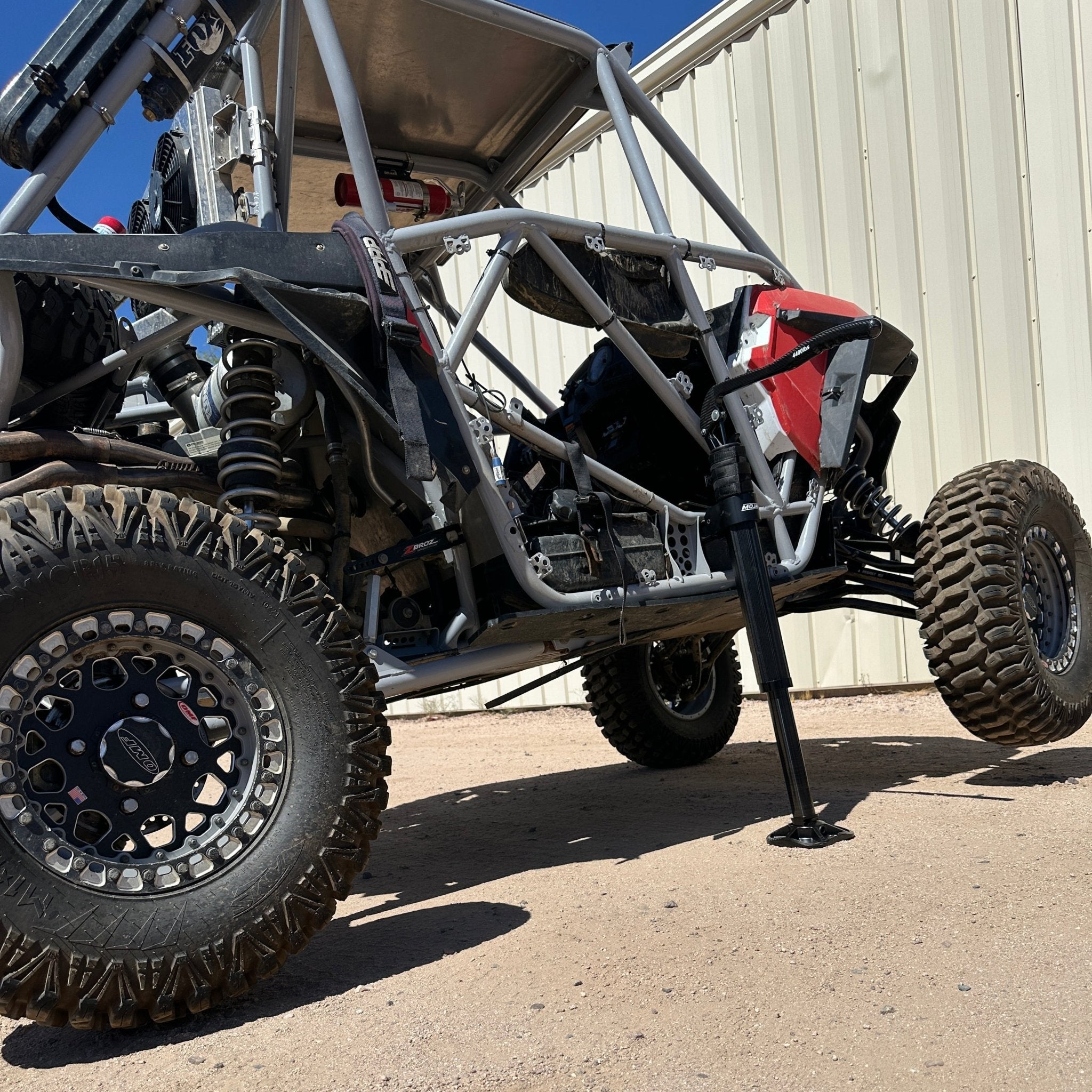

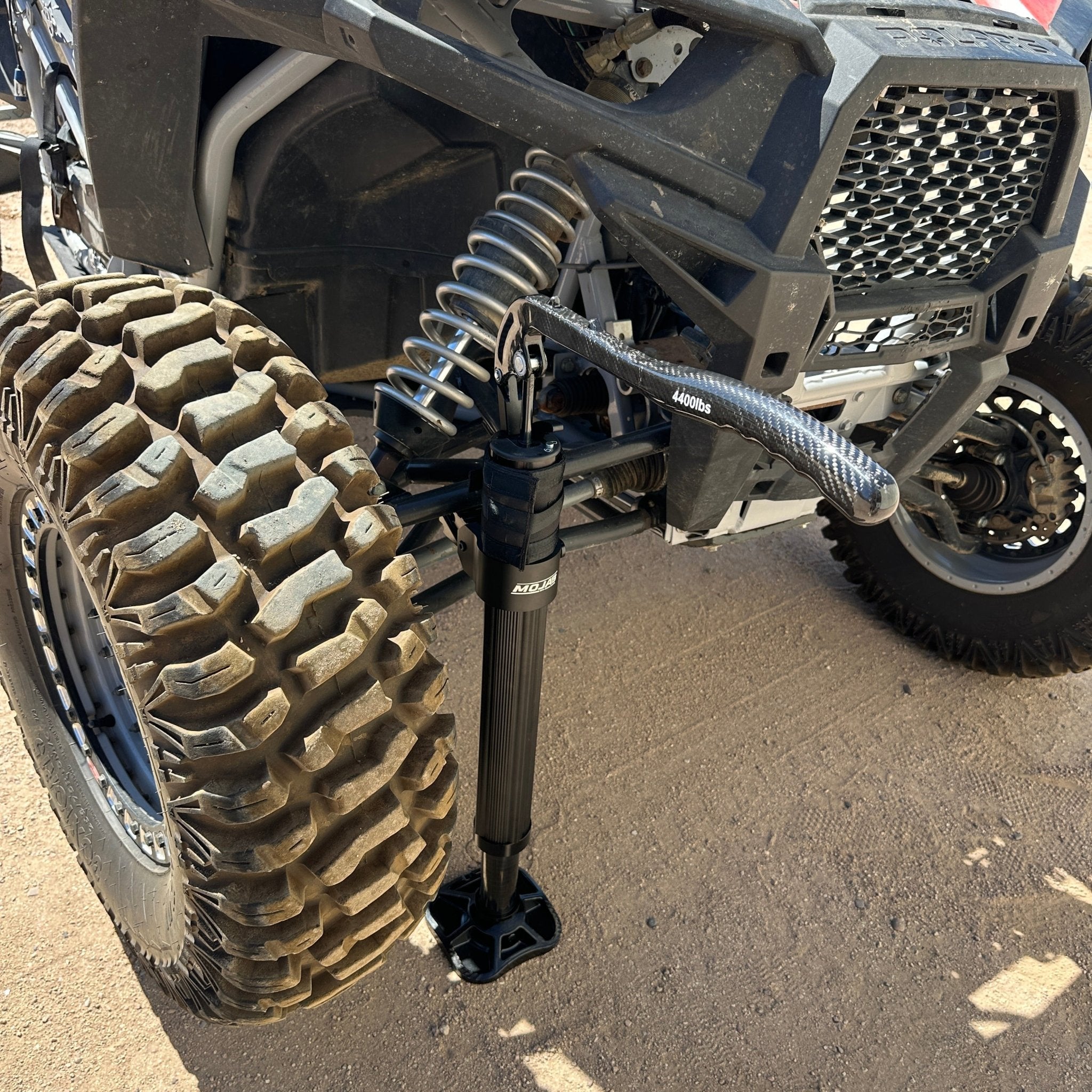

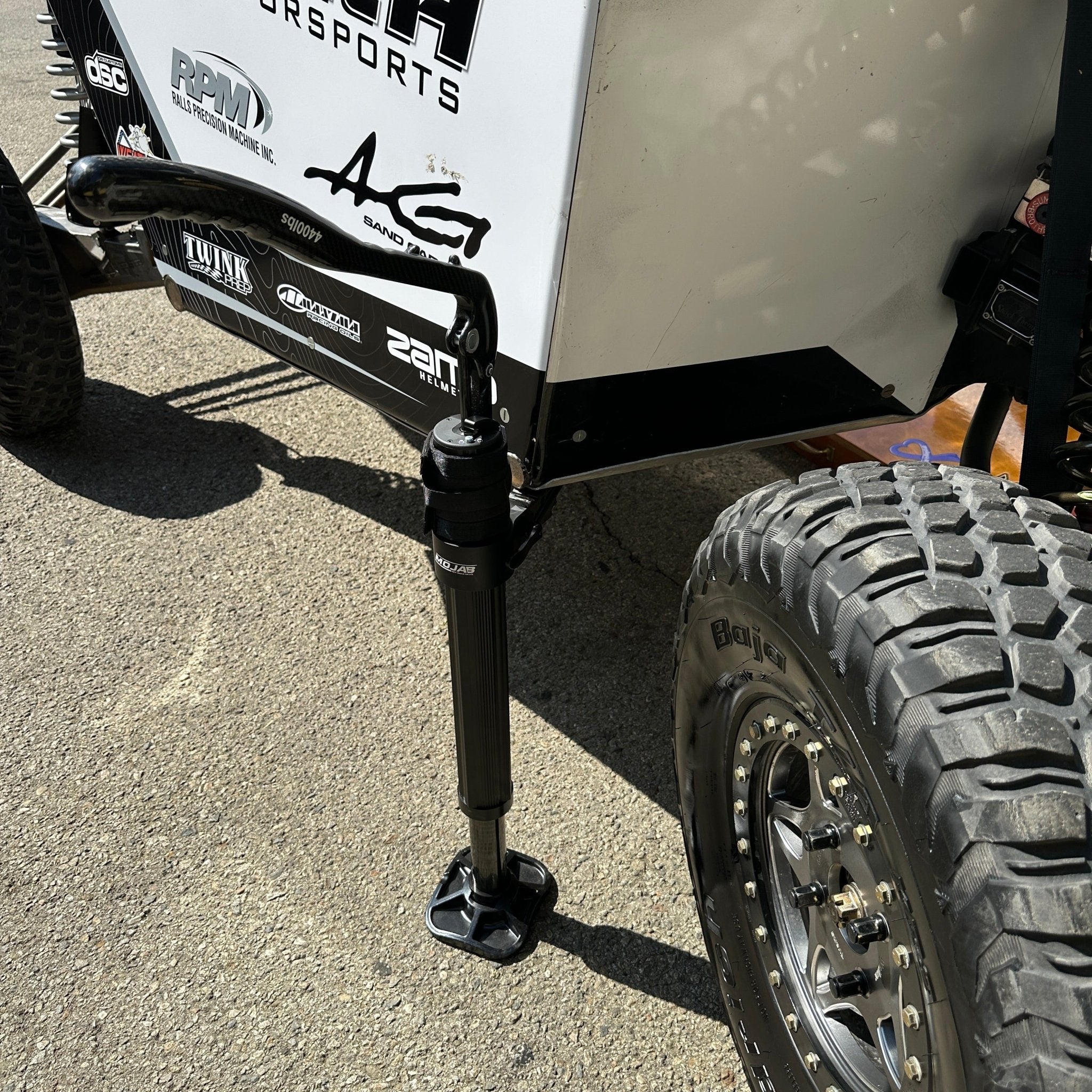

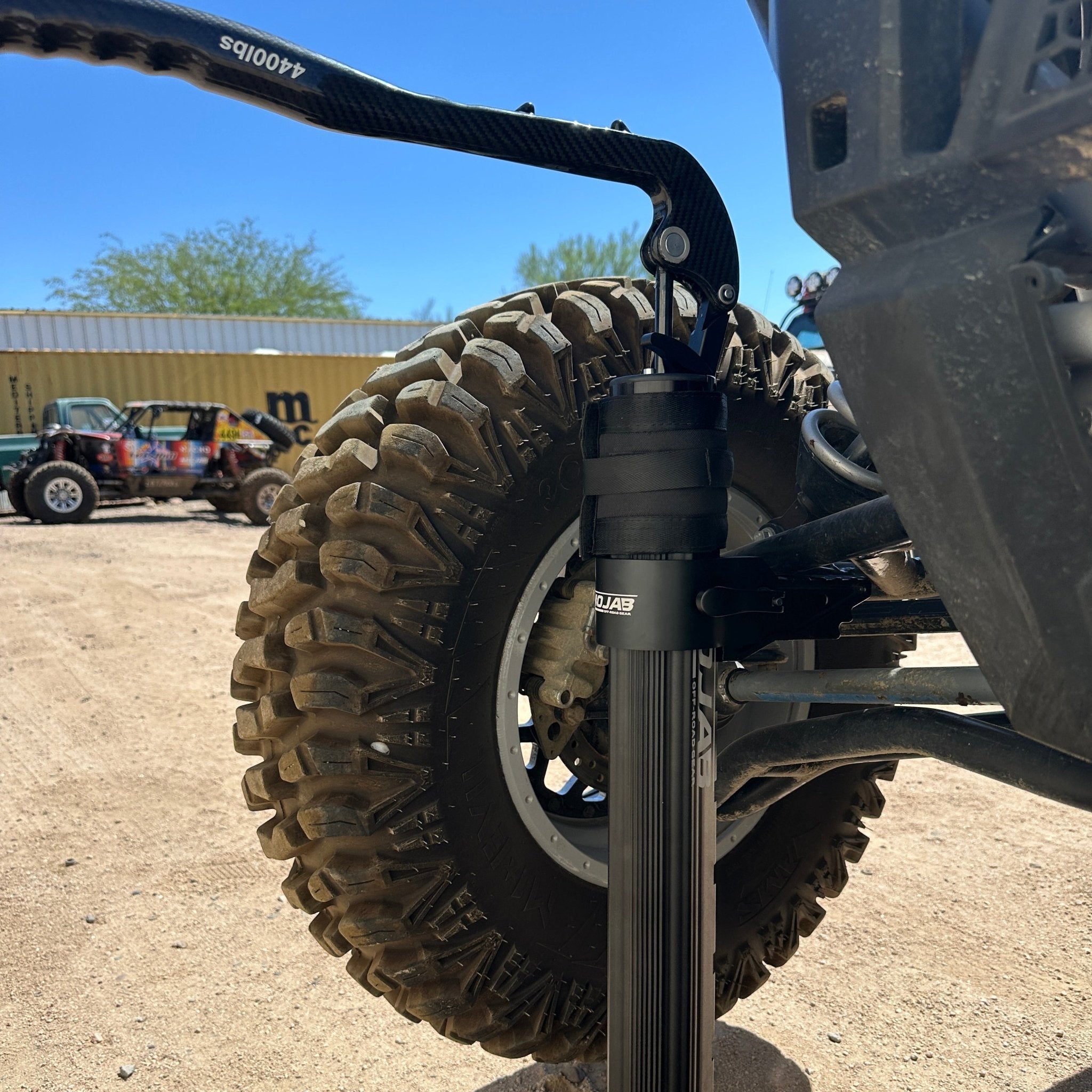

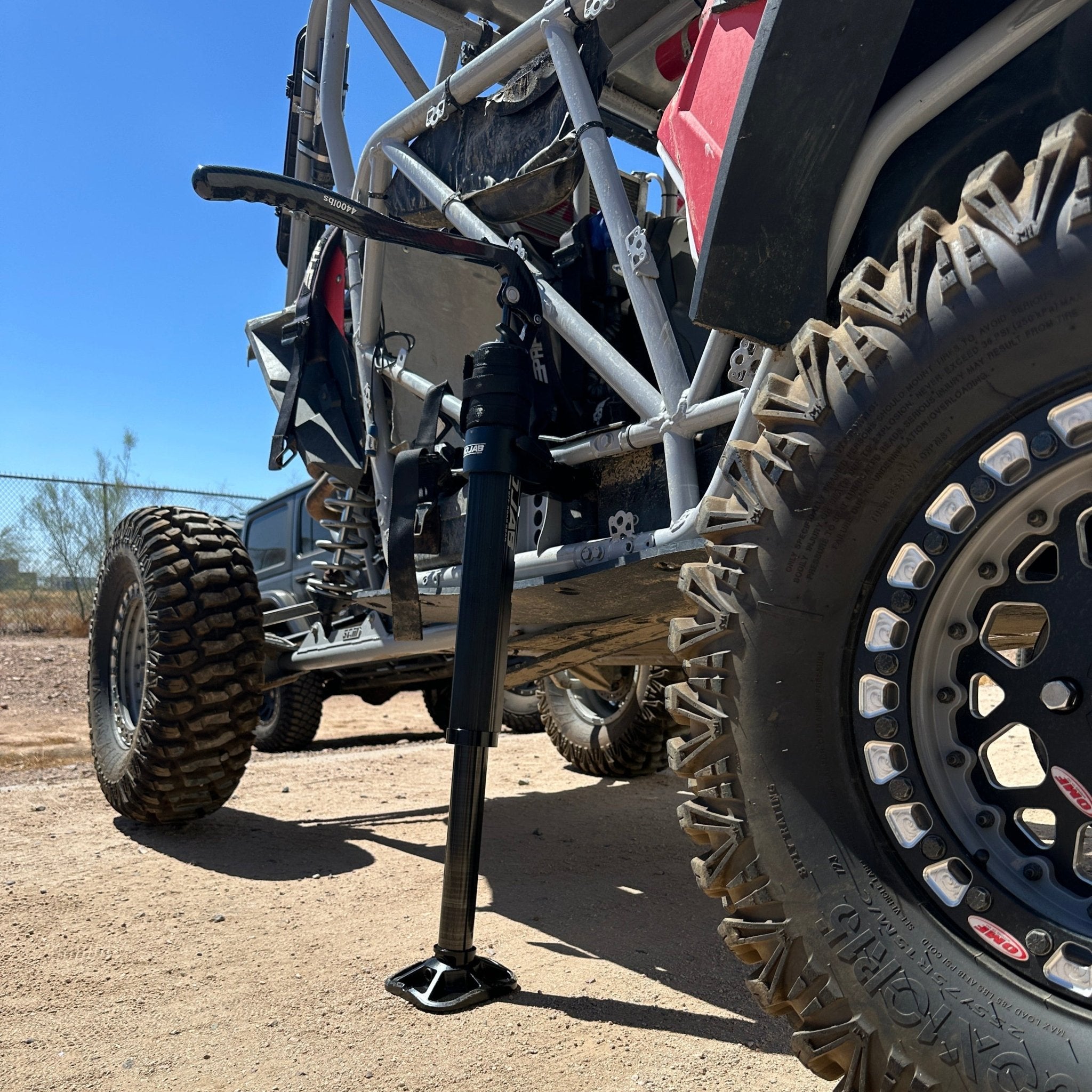

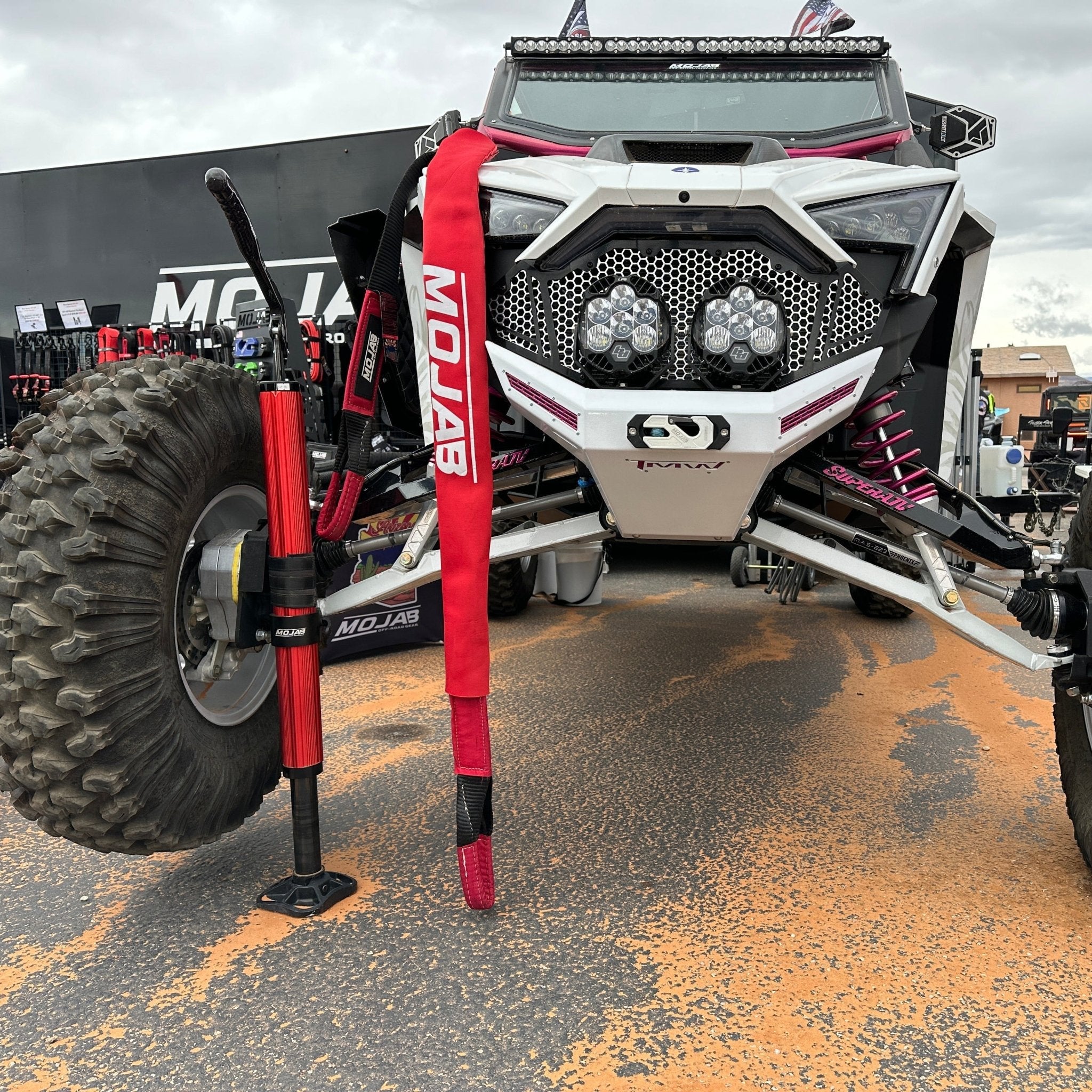

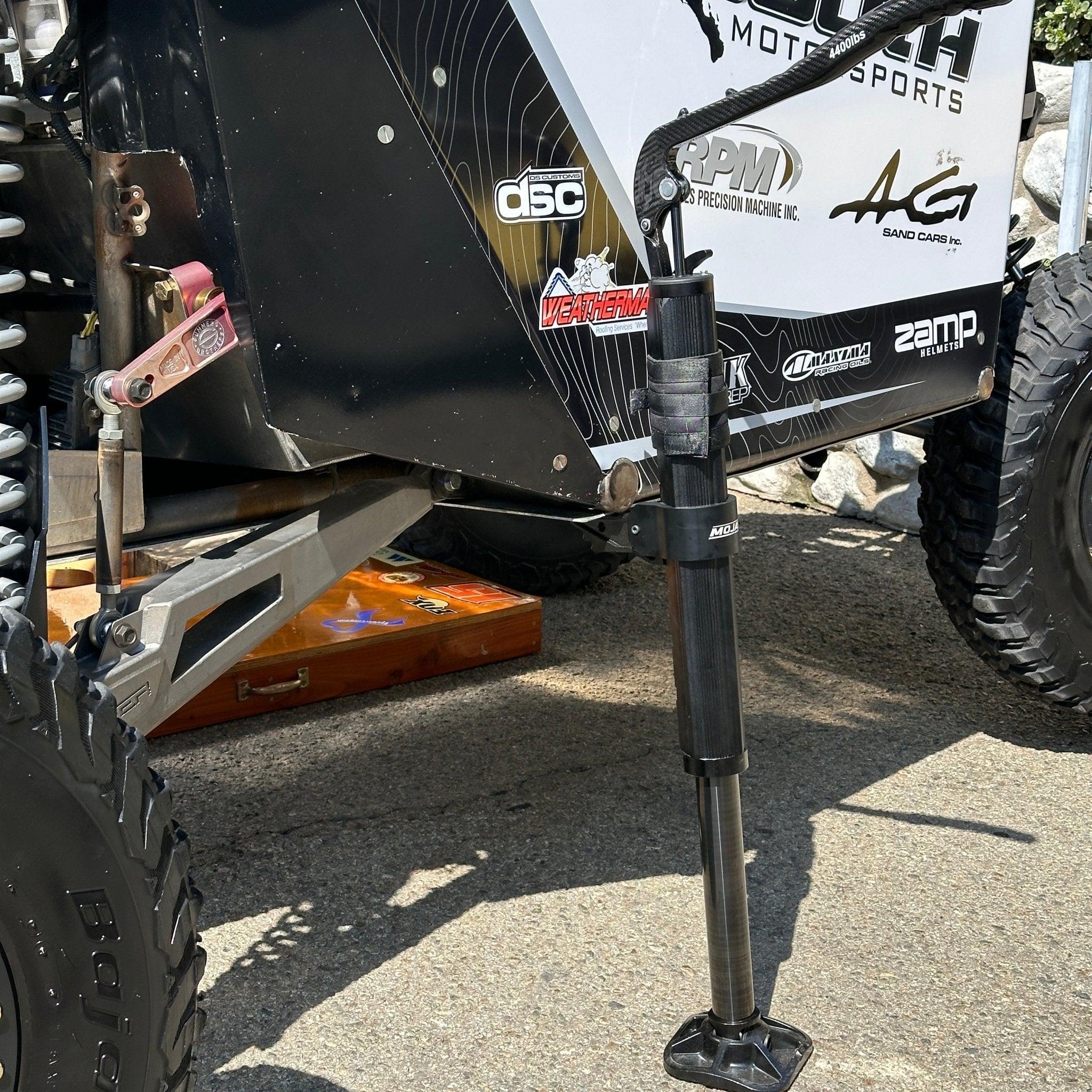

Designed for maximum versatility, the Carbon Pro Compact is the 8” shorter version of the Original Carbon Pro jack—same reliability and performance in a size that fits tight builds. It’s right at home on side-by-sides and full-size rigs running up to 37” tires—Jeep, Toyota, Ford Bronco, buggy, and more. The hydraulic action makes lifting smooth and efficient with minimal human force; one pump at a time gets you controlled height with precise, stable operation you can trust under load.

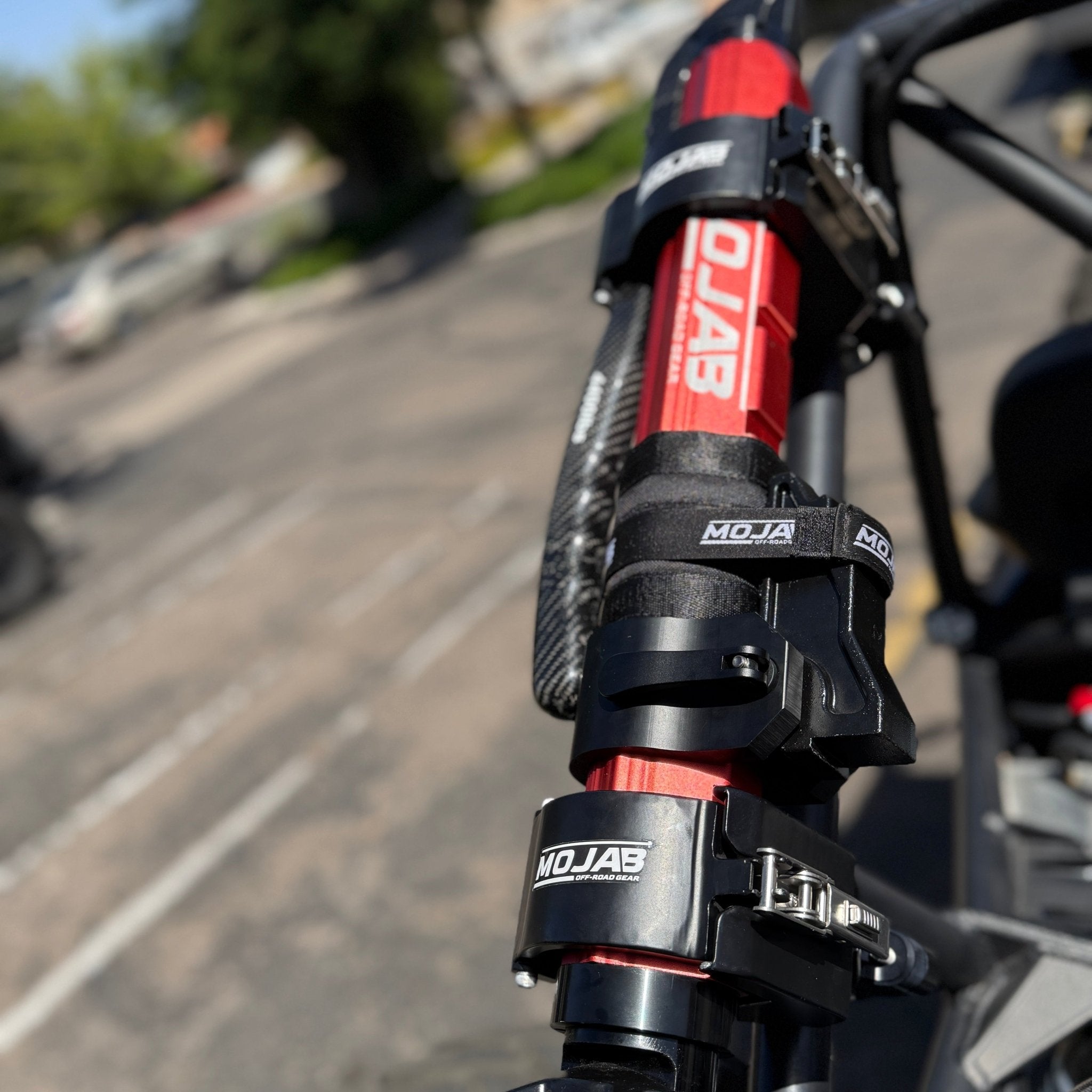

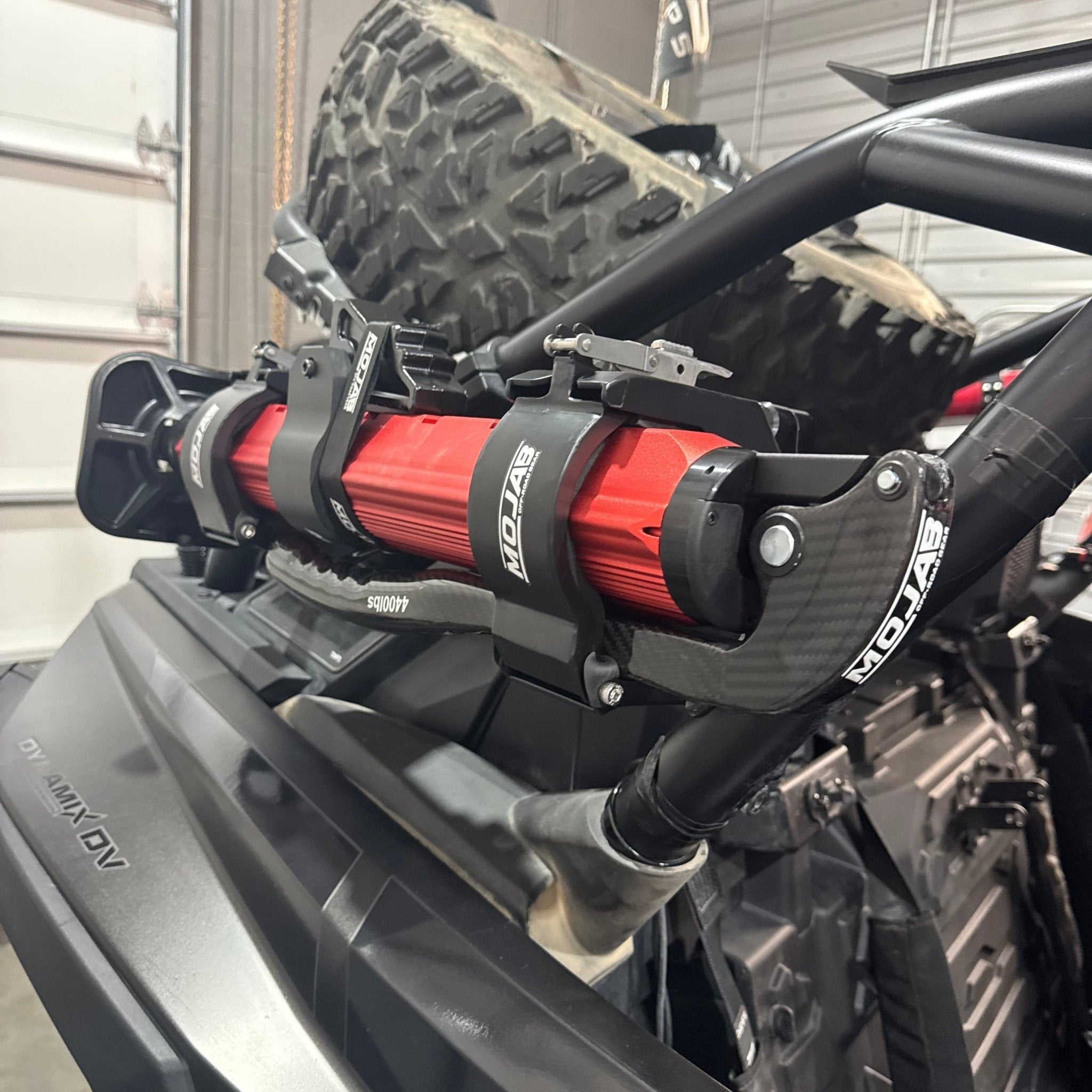

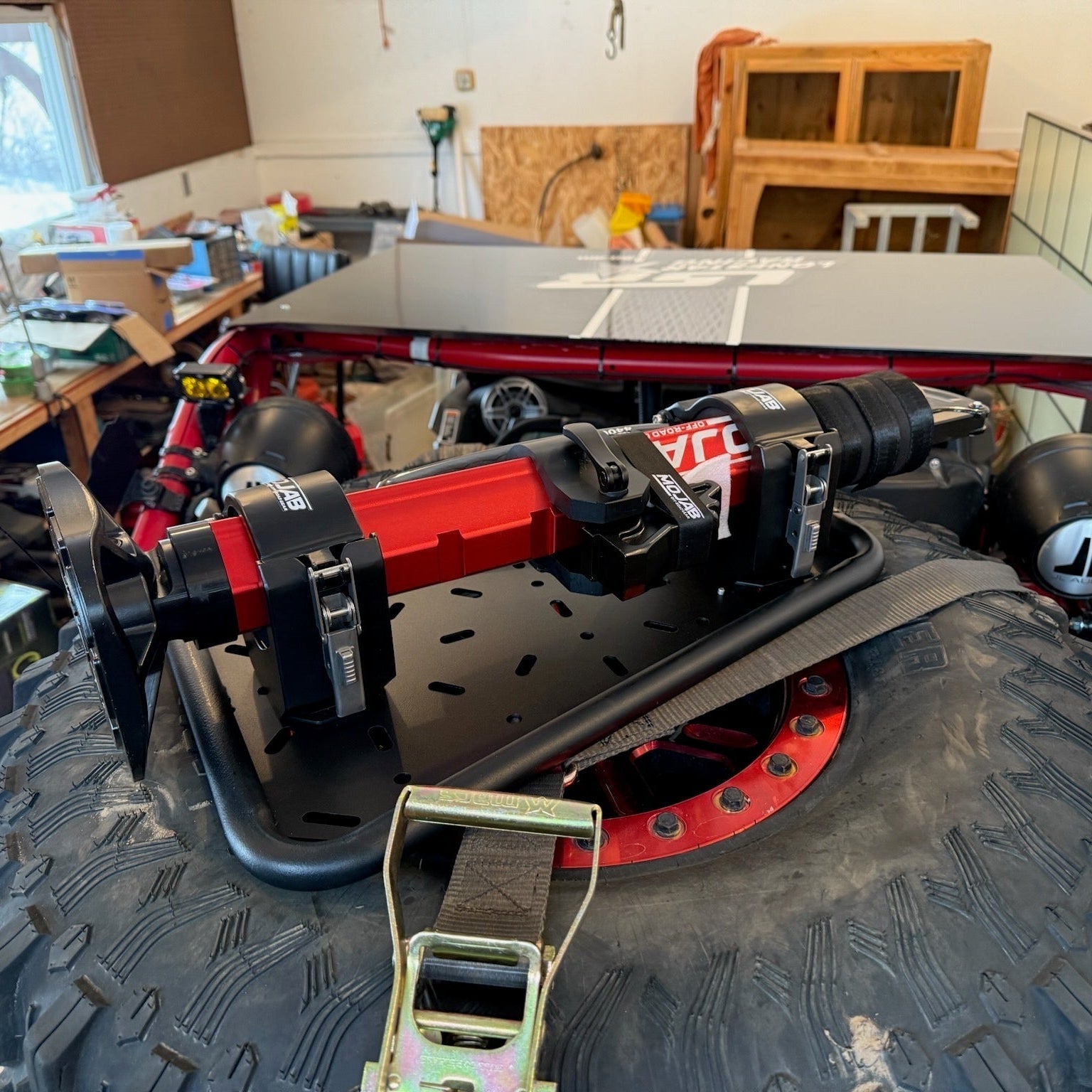

Mounting clamps (included)

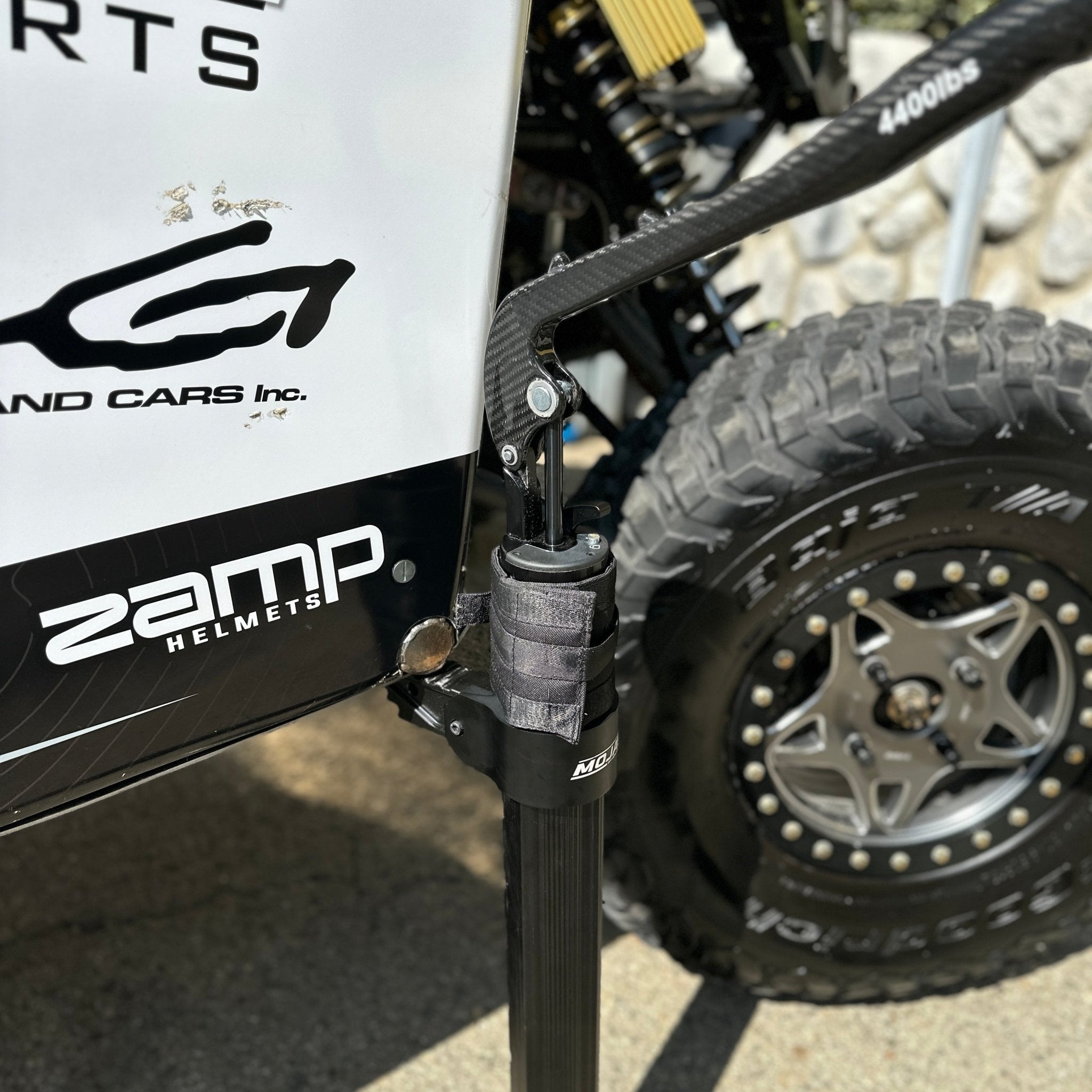

This set includes two heavy-duty mounting clamps designed specifically for our hydraulic jacks. They give a secure, reliable attachment so the jack stays put during travel and work. Built to withstand demanding applications for long service life.
Note: The clamp ADAPTER is not included in this kit and can be purchased separately on our website.
Air bleeder valve — use & maintenance
The Carbon Pro Compact Jack features a silver air bleeder valve located just underneath the black lowering lever.
- The valve has two positions: Lock and Unlock.
- When the jack is mounted/stored: keep the valve Locked. Fully compress the jack after use and store in a dry place, away from moisture and water, to prevent the steel piston from rusting.
- When you start using the jack: turn the valve to Unlock.
- Air bleeding process: the primary function of this valve is to bleed air from the system.
- Turn the valve counterclockwise to unlock, then push the valve down when there is no pressure behind the handle until you hear air release. Bleed every 7–8 cranks so the jack equalizes properly.
Coating disclaimer
The jack’s finish is not UV-resistant and may fade/discolor with prolonged sun exposure. The coating is cosmetic and not covered under warranty. For best results, store in shade/covered when not in use—long sun and harsh weather will accelerate surface wear.

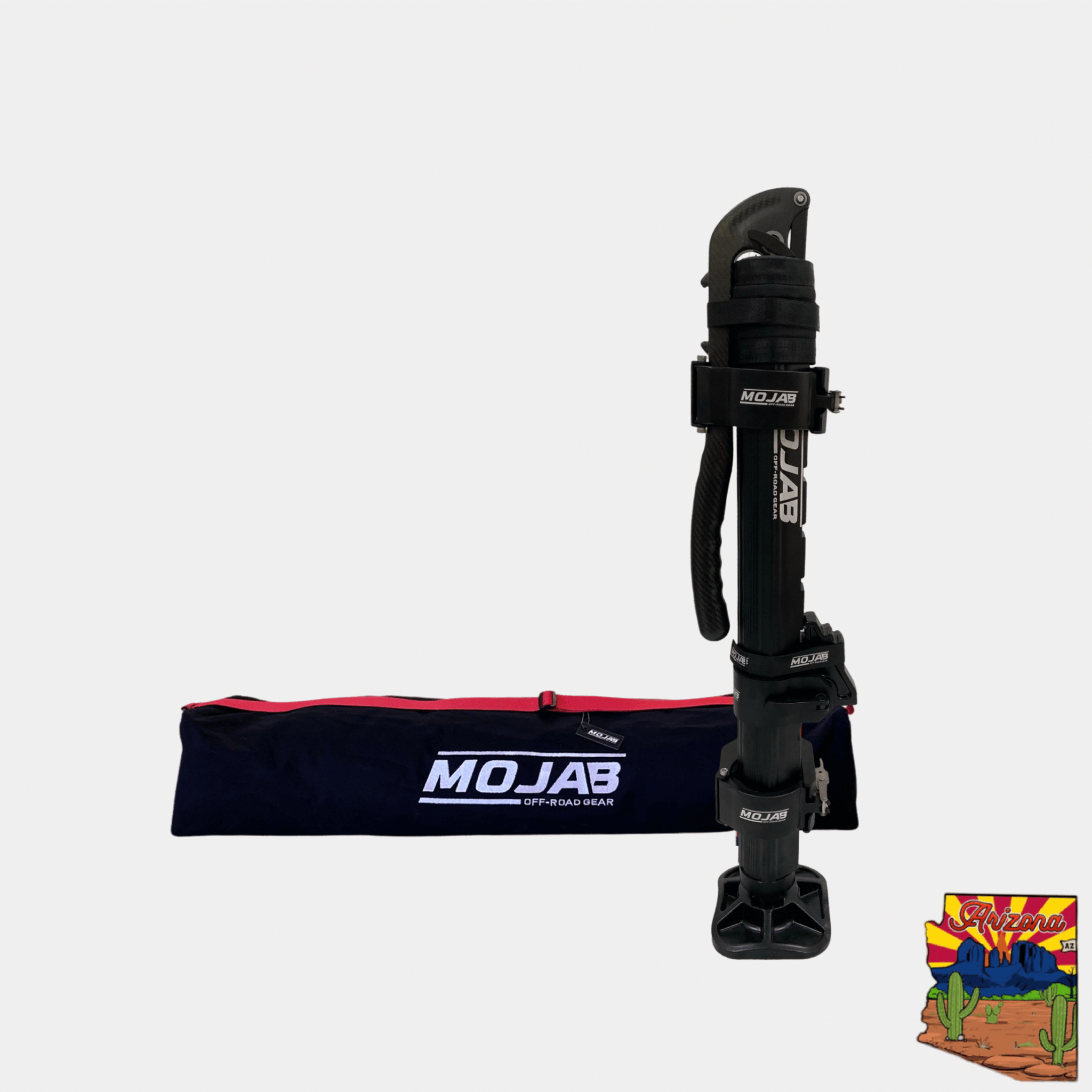

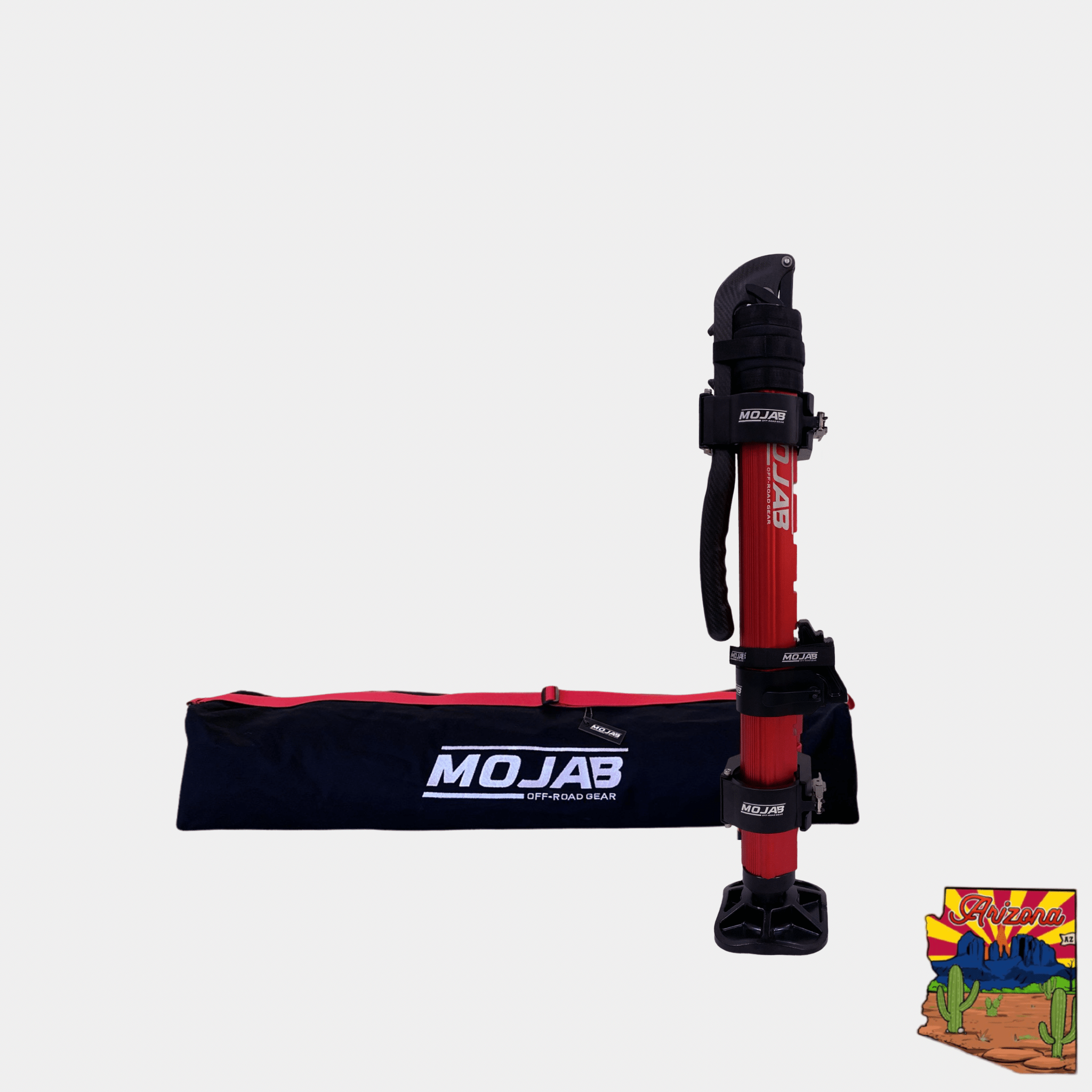

In the kit
- CarbonPro Compact Hydraulic Jack
- Durable canvas storage bag
- 2 mounting clamps
Note: the clamp ADAPTER is not included and is available separately.
Partner item — ships directly from MOJAB OFFROAD.
