Jackery Anderson Connector & Cable
Description
This Connector and Cable is fitted with SolarSaga 100 Prime Solar Panel. The Anderson Extension Cable is compatible with the Jackery SolarSaga 500 X Solar Panel. Please ensure the total system voltage does not exceed 120V.
The Jackery Anderson Connector & Cable provides secure, high-efficiency connectivity for Jackery solar setups, ensuring reliable power transfer for home backup, off-grid charging, and outdoor use. Each component is engineered for clean energy systems that require stable voltage, safe connections, and flexible panel configuration. With universal Anderson locking heads and durable construction, it offers a dependable way to expand, parallel, or extend your solar array.
Compatibility & System Use
This connector set is designed for SolarSaga 100 Prime and 500 X panels, supporting both series and parallel configurations. The Anderson Extension Cable increases panel placement flexibility up to 10 ft, helping you position panels for optimal sunlight. The Anderson Y Parallel Connector boosts system current, while the Anderson Y Series Connector increases operating voltage. Together, they provide a safe, click-locked connection that maintains stable power flow to your Jackery power stations.
Supported Models & Panel Limits
For Explorer 600 Plus and Explorer 1000 V2, a single DC input supports up to two SolarSaga 100 Prime panels in series. Explorer 1000 V2 can support up to four panels total. Explorer 1500 supports two panels in parallel per DC port, up to four total. Explorer 1000 Plus supports up to four panels in series and parallel combinations, allowing eight total SolarSaga 100 Prime panels. Higher-capacity systems including Explorer 2000 Plus, Explorer 2000 Pro, and Explorer 3000 Pro are also supported when configured within Jackery voltage limits.
Secure & Efficient Connections
Each connector features standard Anderson locking heads that create a firm, audible click when fully seated, preventing accidental disconnects during use or movement. This secure fit helps maintain steady power output when running high-draw devices or charging large-capacity stations. The design ensures clean, low-resistance transfer whether used for home backup, RV charging, or portable solar setups.
Cable & Connector Specs

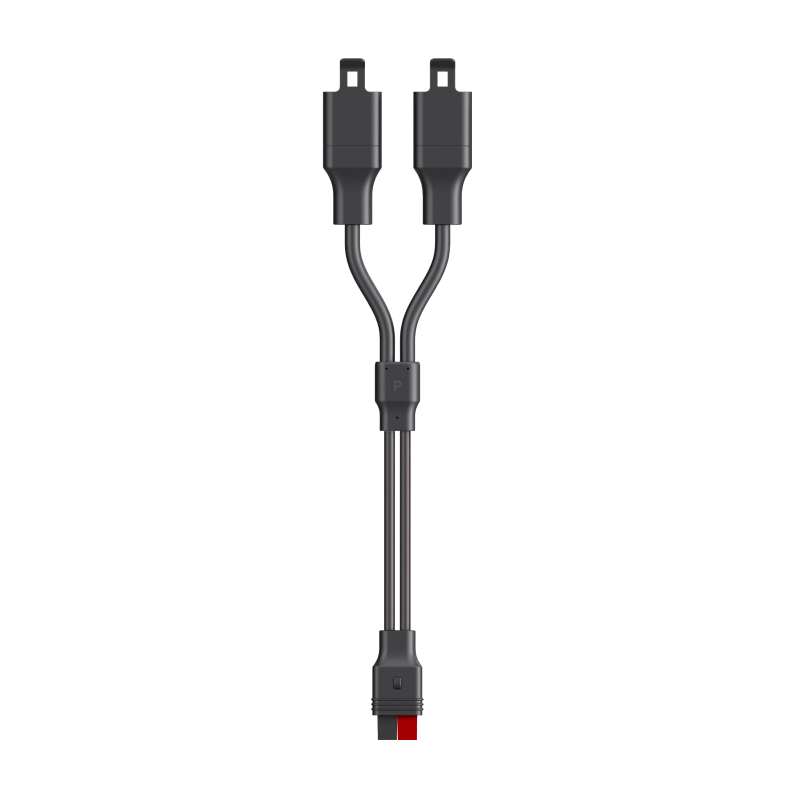

- Anderson Y Parallel Connector: 7.5 inches

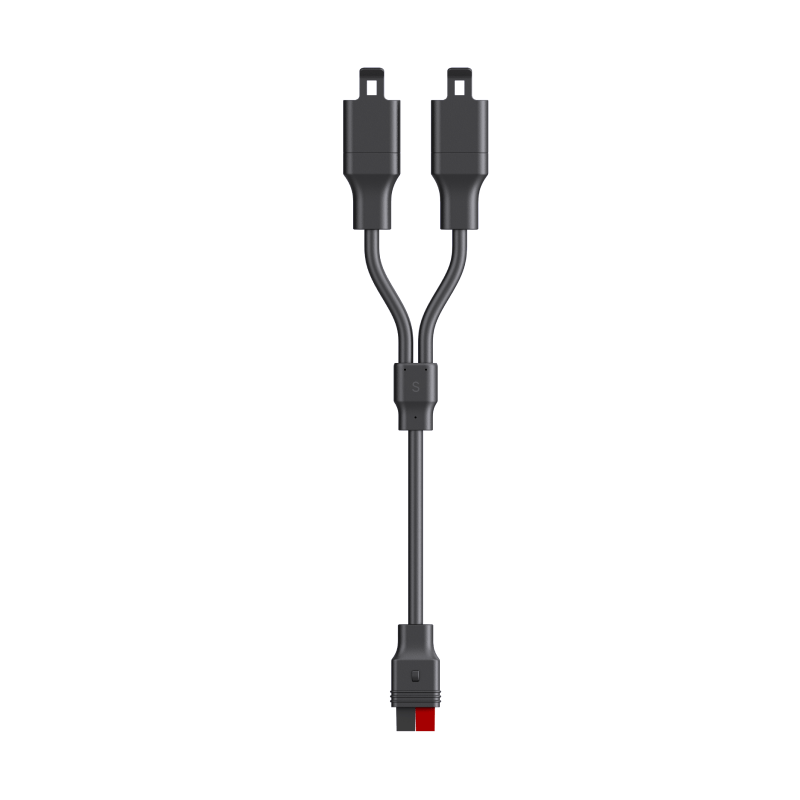

- Anderson Y Series Connector: 7.5 inches

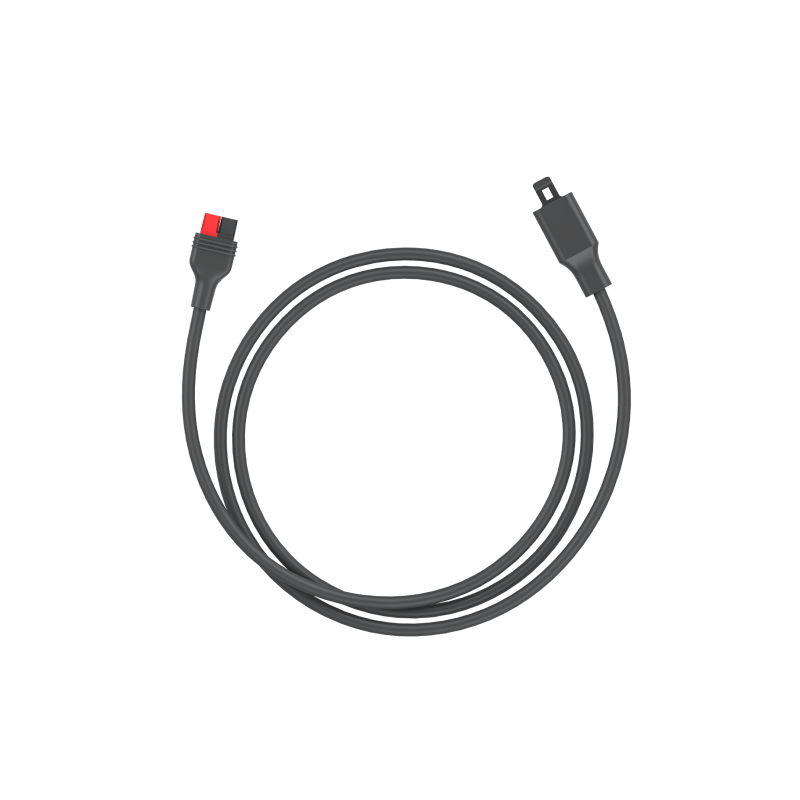

- Anderson Extension Cable: 10 ft
- Compatible Panels: SolarSaga 100 Prime, SolarSaga 500 X
- Supported Models: Explorer 600 Plus, Explorer 1000 V2, Explorer 1500, Explorer 1000 Plus, Explorer 2000 Plus, Explorer 2000 Pro, Explorer 3000 Pro
- System Voltage Limit: 120V maximum
Guarantee: 30-Day Returns Guarantee
Partner item — ships directly from Jackery.
