Steering Kit: Tie Rod & Drag Link for Jeep CJ (1982-86) Wide Track
$423.66 – $451.18
You can now replace the stock wimpy tie rod and drag link on your 1972-1986 Jeep® CJ with our Heavy-Duty Tie-Rod/Drag-link Kit. Manufactured from 1" O.D. x .219-wall DOM steel tubing, threaded on each end for 5/8 left and right rod ends, with wrench flats on each end....

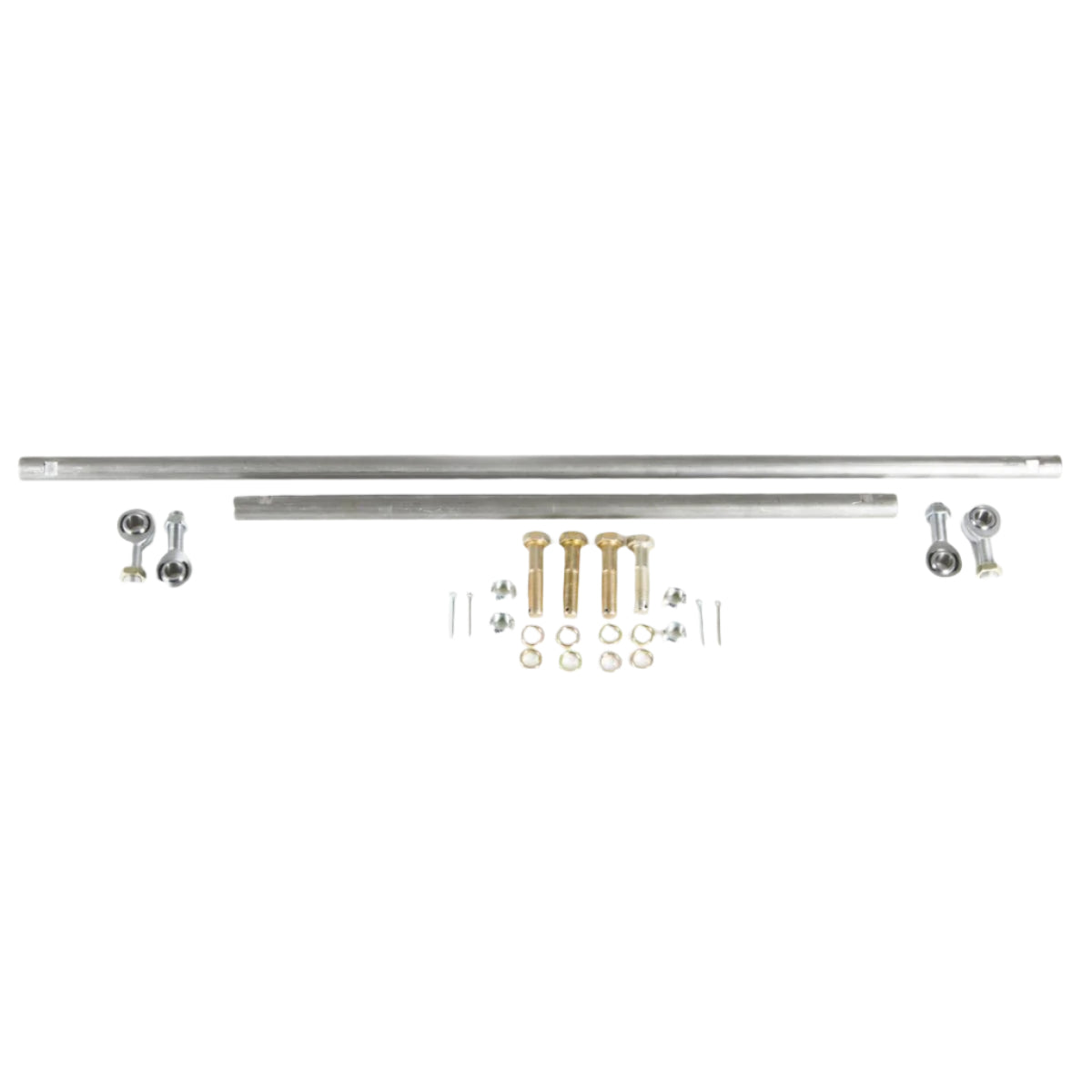

You can now replace the stock wimpy tie rod and drag link on your 1972-1986 Jeep® CJ with our Heavy-Duty Tie-Rod/Drag-link Kit. Manufactured from 1" O.D. x .219-wall DOM steel tubing, threaded on each end for 5/8 left and right rod ends, with wrench flats on each end. The rod ends are race-car quality, Teflon®/Kevlar® lined, self-lubricating and the alloy steel heat treated body is plated for durability. Rods will mount over or under the knuckles, and you must drill the stock tapered hole to a straight 5/8" hole.
-
Heim Joints, jam nuts, and grade-8 hardware are provided.
- Available in bare steel (no paint) or zinc plated.
Fits 1982-1986 CJs with Dana 30 front axle, wide track.
Note: Custom applications available!
| Finish | No zinc plating, Yellow zinc plating |
|---|
QUESTIONS & ANSWERS
Ask a Question-
I just picked up a 1972 Jeep Commando, I've heard it uses in CJ components. I want to up grade my steering arms which one do I need or where/how can I find out? TIA
You will need to measure your lenght of your tie rod and drag link and give us a call to make sure we have the length.
877-533-7229
Thanks -
Would it be acceptable to use a tie rod hole adapter instead of drilling the taper out of the steering knuckles?
No. Our Heim joing uses a 5/8" bolt and tapered hole is smaller than that.
-
What are the bolt lengths? Thread pitch?
3 ea. 3" x 5/8"-11
1 ea. 2-3/4" x 5/8-11 -
What are the lengths of the drag link and tie rod?
The lengths are 43-1/4" and 27". Add 3" for your Heim joints
Thanks -
Original TRE and knuckle are tapered. What has to be done to the knuckle to accept the the new heavy duty ends?
You will need to drill out the end to 5/8" hole
-
My stock Drag link has an adjustment point in it. Is all of the adjustment in the MORE draglinks done through the ends?
Yes
-
Do your kits come with misalignment spacers ? Are they even needed?
Chad,
Yes they do come with spacers and I would recomend them since it will get your hiem joints full articulation.
Thanks,
Scott -
Will this work with a spring over lift or just the factory leaf under??
Levi,
It will work either over or under.
Thanks
Scott -
Does this kit require any welding?
No. There is no welding required just drilling out a 5/8 hole
Thanks,
